Item specifics
Brand Name:
SZDoit
Material:
Metal
Tool Supplies:
Assembled class
Upgrade Parts/Accessories:
Base C
RC Parts & Accs:
Motors
Size:
100mm
Use:
Vehicles & Remote Control Toys
Technical parameters:
Value 5
Model Number:
Mecanum
Remote Control Peripherals/Devices:
MOTOR
For Vehicle Type:
Cars
Four-wheel Drive Attributes:
Assemblage
Wheelbase:
Bottom Plate

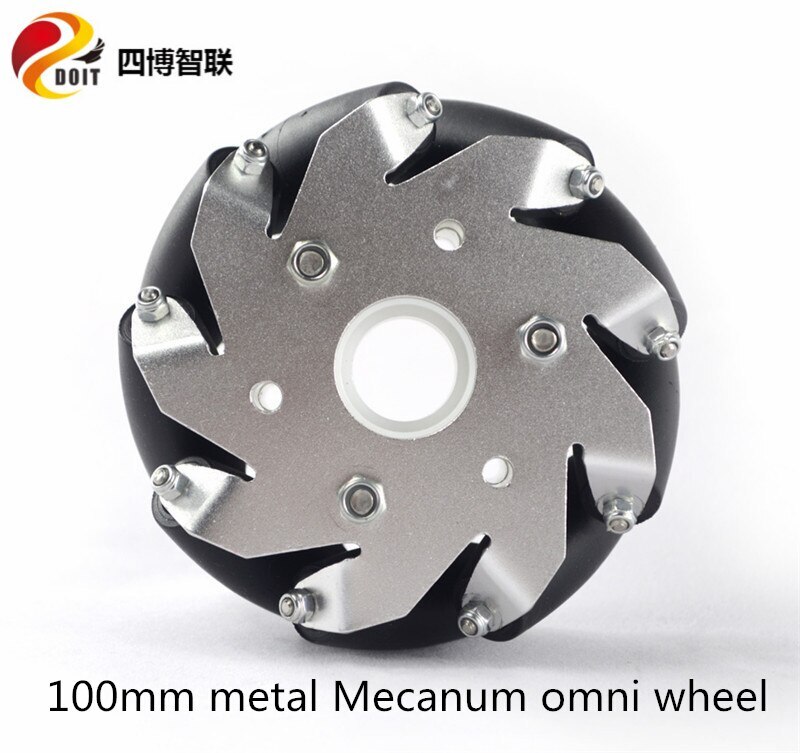

100mm metal mecanum omni wheel:
- Wheel diameter: 4 inches (100mm)
- Wheel width: 50mm
- Number of rollers: 9
- Number of boards: 2
- Roller bearing: Saigang
- Body material: aluminum alloy
- Rolling stick material: rubber
- Gasket material: nylon
- Rolling stick length: 19 mm
- Net weight: 400g
42 stepper motor:
- Model: 17HS-C4040
- Body: 40mm
- Shaft length: 23mm
- Shaft diameter: 5mm
- Torque: 0.45N.m
- Current: 1.7A
- Voltage: 12-24V
- Line sequence: ACBD
- Two-phase four-wire
- Line voltage: DC1.6V
- Current: DC1.0A/phase
- Electrical strength: AC600V/1mA/1S
100mm coupling:
- Name: Aluminum alloy coupling (only for 100mm omnidirectional wheel)
- Material: Aluminum alloy
- Outer diameter: 56.8mm
- Bore length: 26.4mm
- Inner diameter: 6mm
- Net weight: 50g
- Match 100mm omnidirectional wheel, mecanum wheel
Application:

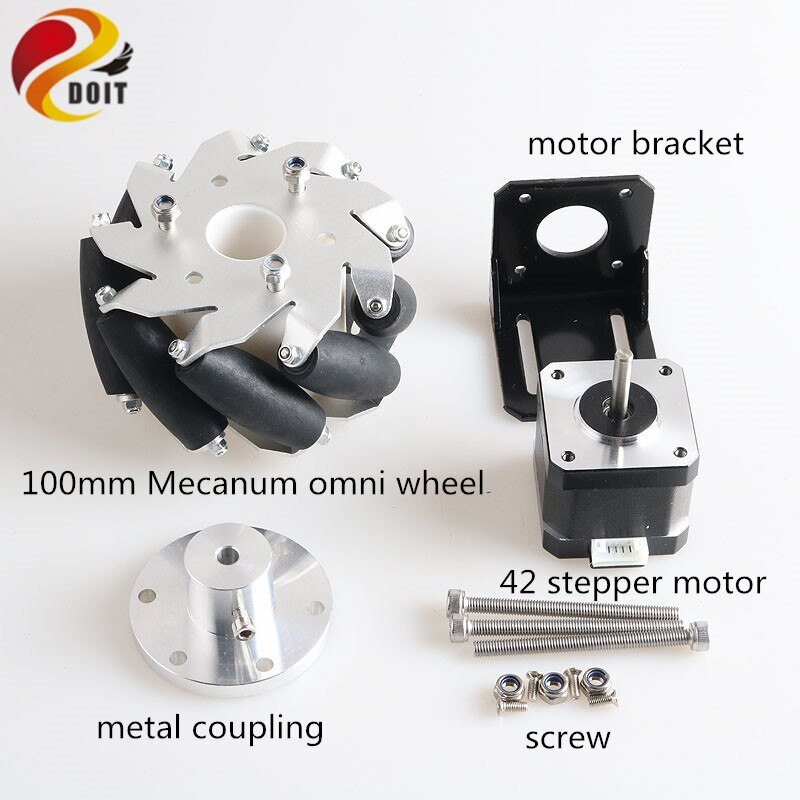

Shipping list:
- 1pcs 100mm omni wheel
- 1pcs 100mm coupling
- 1pcs 42 stepper motor
- 1pcs motor bracket
- Free: screw
Note:
- More documents can be downloaded at wiki.doit.am.
