  • 6 Degrees of Freedom Metal Robot Arm with Control Kit Mobile Robot Platform DIY Education Parts Open Source Maker Robot Model
  • 6 Degrees of Freedom Metal Robot Arm with Control Kit Mobile Robot Platform DIY Education Parts Open Source Maker Robot Model
  • 6 Degrees of Freedom Metal Robot Arm with Control Kit Mobile Robot Platform DIY Education Parts Open Source Maker Robot Model
  • 6 Degrees of Freedom Metal Robot Arm with Control Kit Mobile Robot Platform DIY Education Parts Open Source Maker Robot Model
  • 6 Degrees of Freedom Metal Robot Arm with Control Kit Mobile Robot Platform DIY Education Parts Open Source Maker Robot Model
  • 6 Degrees of Freedom Metal Robot Arm with Control Kit Mobile Robot Platform DIY Education Parts Open Source Maker Robot Model

6 Degrees of Freedom Metal Robot Arm with Control Kit Mobile Robot Platform DIY Education Parts Open Source Maker Robot Model

0 stars, based on 0 reviews
Price:
$131.58$129.58 / piece Order Processing Time: This item will be shipped out within 3 working days |FREE SHIPPING
Color
  • Black WiFi
  • Silver WiFi
  • Golden WiFi
  • Black Bluetooth
  • Silver Bluetooth
  • Golden Bluetooth
  • Black Handle
  • Silver Handle
  • Golden Handle
Quantity: - + 2646 items available

Item specifics

Brand Name:
Doit.am
Item Type:
Model
Gender:
Unisex
Size:
One Size
Warning:
other
Dimensions:
other
Mfg Series Number:
Assembly/Assembling
Remote Control:
No
Version Type:
First Edition
Commodity Attribute:
Assembly
Model Number:
other
By Animation Source:
CHINA
Condition:
In-Stock Items
Completion Degree:
Semi-finished Product
Scale:
1/60
Theme:
Robots
Material:
Metal
Original Package:
YES
Puppets Type:
Model

6 degree of freedom metal robotic arm

Body material: aluminum alloy

Weight: 0.64kg (including servo weight)

Color: black/silver/golden optional

Steering gear: 4pcs MG996r or DS3218 metal gear large steering gear and 2pcs MG90S servo optional

Features: the base of the robot arm can rotate 360 degrees

​3

2

MG90S parameters

Pulling force: 1.6 kg/cm (4.8 V), 1.8 kg/cm (6 V)

Reaction rate: 0.10 sec/60 degree (4.8 V), 0.09 sec/60 degree (6 V)

Working voltage: 4.8-6.0 V

Cable length: 250 mm

Interface specification: JR / FP universal

Accessories: Multi-function swing arm, fixing screws

Scope of application: fixed wing, helicopter KT, small robot, robot model, etc.

8​​

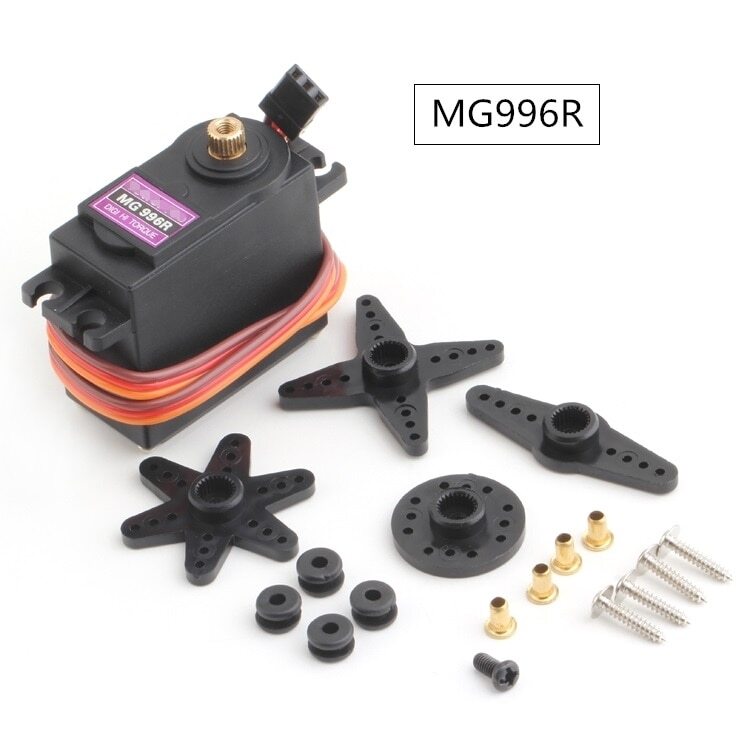

MG996R parameters

  • Connector line: heavy duty, 11.81" (300 mm)
  • Colour: black
  • Gear: metal gear
  • Working voltage: 4.8 - 7.2Volts
  • Stall torque: 12 kg - cm (208.3 oz.) at 6V
  • Stall torque: 9 kg - cm (180.5 oz.) at 4.8V
  • Working speed: 0.13sec/60 degrees (6.0V no load)
  • Working speed: 0.17sec/60 degrees (4.8V no load)
  • Weight: 55 grams
  • Product pull: 15kg/cm (6V)
  • Product size: 40.7mm×19.7mm×42.9mm
  • Three lines of steering gear connector: orange - signal red - positive brown - negative
  • 2

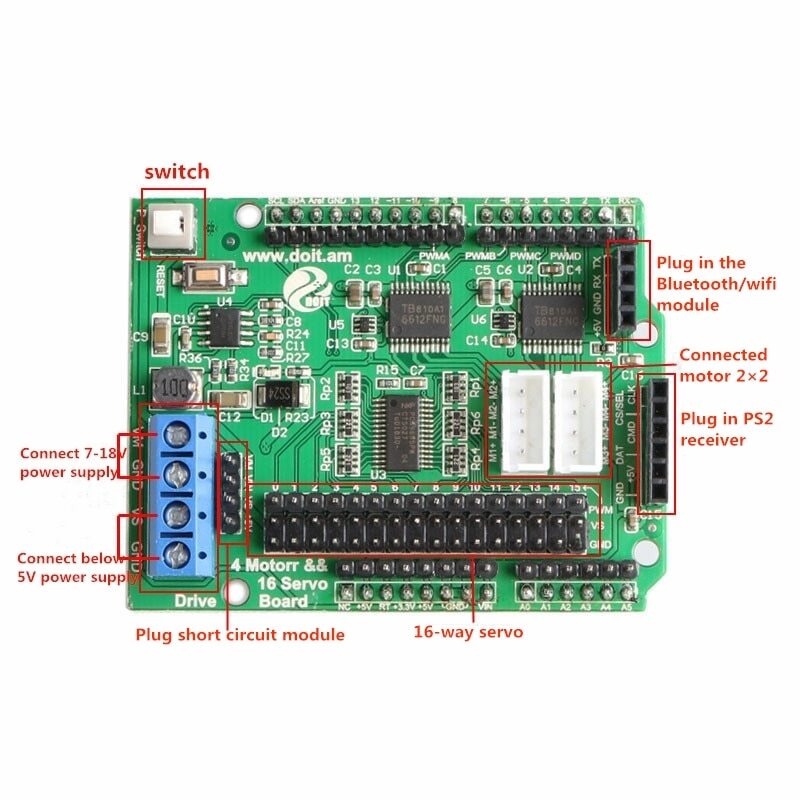

  • Module pin description and schematic

    16-way servo and four-way motor drive board, using TB6612 four-way drive, PCA9685 for 16-way servo control.

    Bring out Arduino UNO I/O pins

    Power supply maximum input voltage 15V/DC

    Reserve Bluetooth & WIFI module socket

    Reserved PS2 handle socket

    Four-way DC motor drive, single-channel maximum drive current 1.2A average / 3.2A peak.

    The 16-way servo drives the pins, and the power can be switched by the external/internal power supply of the jumper cap.



    Product technical specifications

    1.power input

    Motor power supply (VM): 4.5V ~ 36V, can be powered separately.

    Steering gear power supply (VIN): 5 ~ 18V, can be powered separately.

    2.single power supply use

    Open circuit VM and VIN, (separately control the motor, 6 ~ 36V).

    Open circuit VS and VIN, separately control the servo (6 ~ 18V).

    Short-circuit VM and VIN while shorting VS and 5V. Simultaneously control the motor (6 ~ 18V) and 16 5V servos.

    Note: Blue and green are randomly distributed.

    11



Note: shipped in bulk, without battery.

6 DOF arm support: 1 set
MG996R servo: 4 pcs
MG90S servo: 2 pcs
WiFi/Bluetooth/handle control kit: 1 set (optional)




020353460104365

    •
      1. Due to computer monitor and the actual shooting brightness and other reasons, there will be  a certain color difference.
      The final color please refer to our actual goods. Please know this before you buy it. Thank you !
      2. The picture we show is        100% Real  Object Photography.
      3. The size may have        2-3cm  differs due to the maunal measurement.
      4. For  the shipping convenience, the product is  unassembled .
