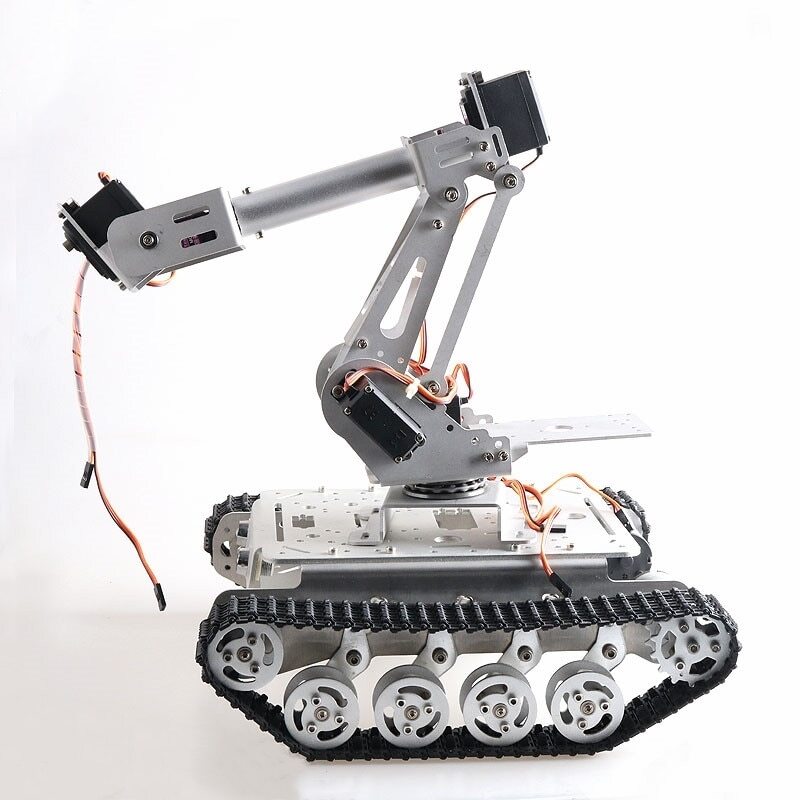

6 DOF Metal Robot Arm+TS100 Tank Chassis Car with WiFi/Bluetooth/PS2 Handle Control Kit Mobile Robot Platform DIY Education Part

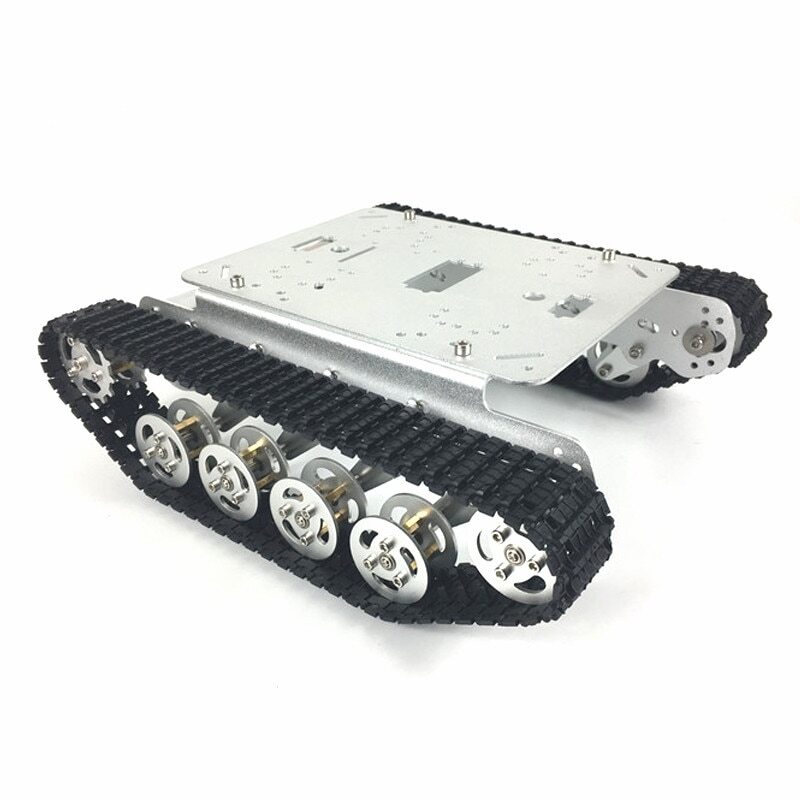

​TS100 chassis parameters

Material: aluminum alloy

Surface: sandblasting oxidation

Track: engineering plastics

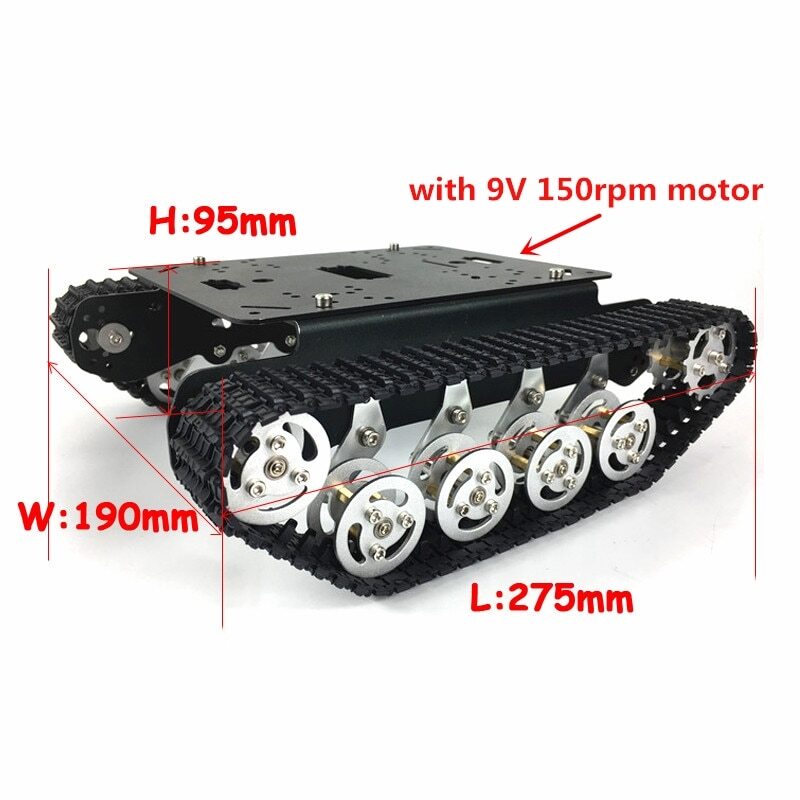

Size: about 275*190*95mm (length * width * height)

Motor: 25mm 9V 150rpm motor with code wheel, speed feedback

Weight: 1.1kg

Load: 5kg

Color: golden/silver/black,optional​

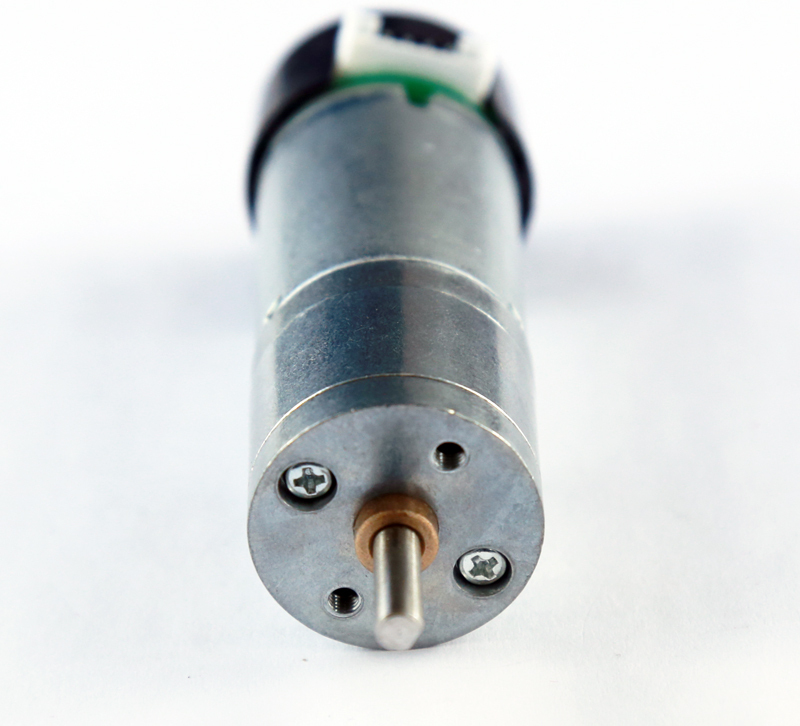

Motor parameters(9V 150rpm motor, with coder)

• Name: 25mm gear motor

• Output speed: 150±10%rpm

• No_load Current: 200mA (Max)

• Stall current: 4500mA(max)

• Stall torque: 9.5kgNaN

• Rated speed: 100±10%rpm

• Rated torque: 3000gNaN

• Rated Current: 1200mA (Max)

• Noise: 56dB

• Working voltage: 9V

• Outside Shaft Length: 14.5mm

• Shaft End Play: 0.05-0.50mm

• Screw Size: M3.0

• Dia. Of Shaft phi: 4mm, D3.5

• Encoder: 2 pulses/circle

Note: shipped in bulk, without battery.

arm without servo

1 set TS100 tank chassis(with 9V 150rpm with encoder motor)

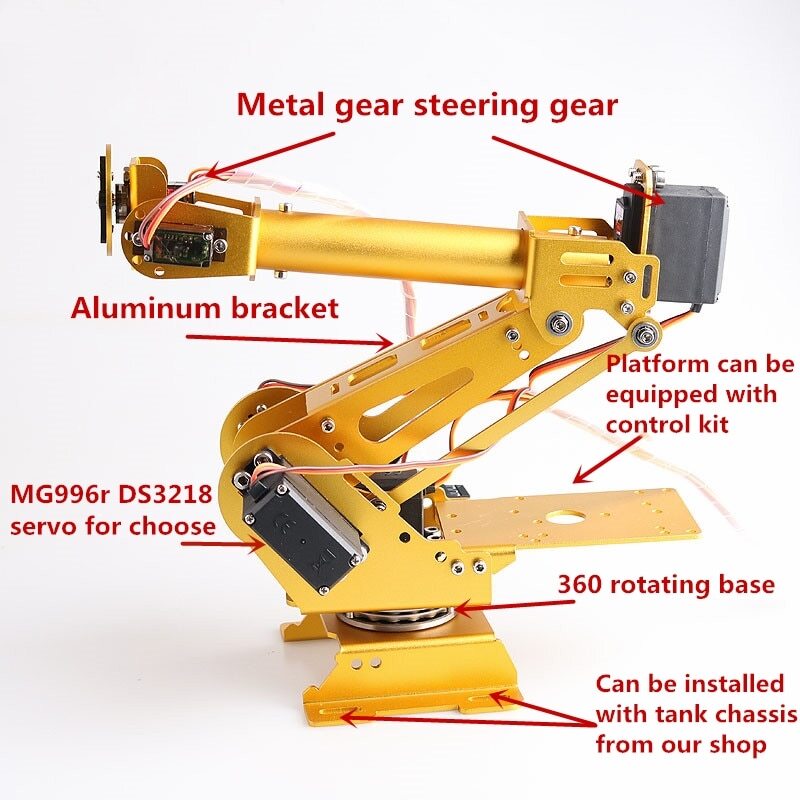

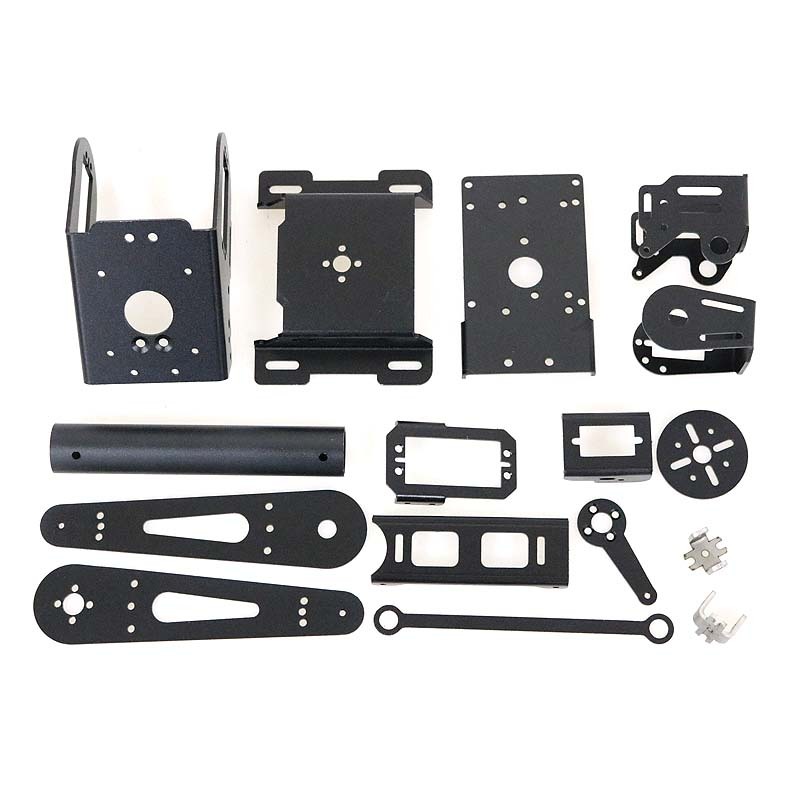

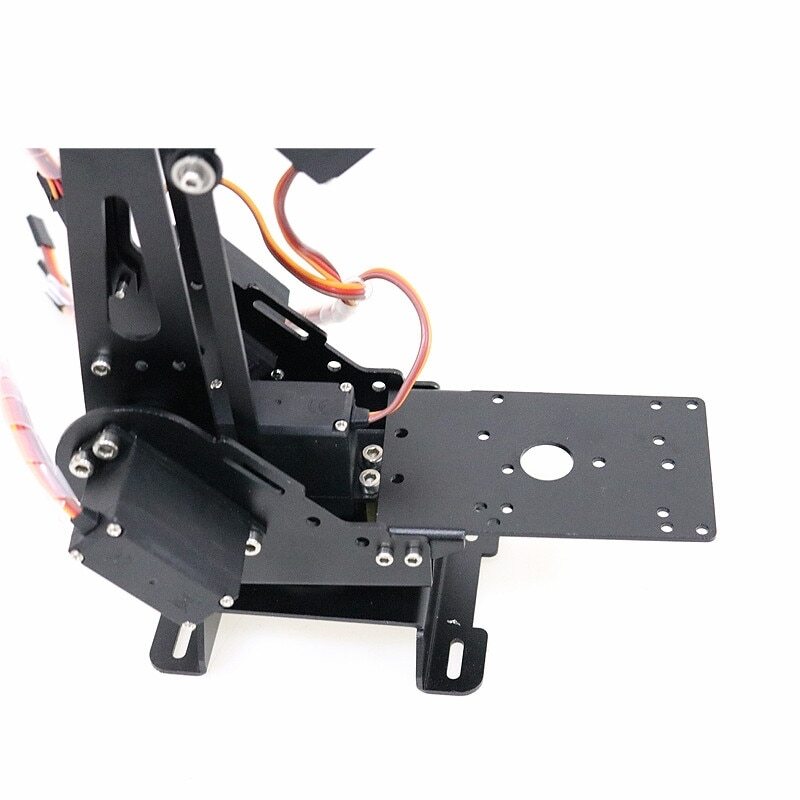

1 set 6 dof robotic arm bracket kit without servo

arm with MG996R

1 set TS100 tank chassis(with 9V 150rpm with encoder motor)

1 set 6 dof robotic arm bracket kit with 4pcs MG996r servos+2pcs MG90S servo

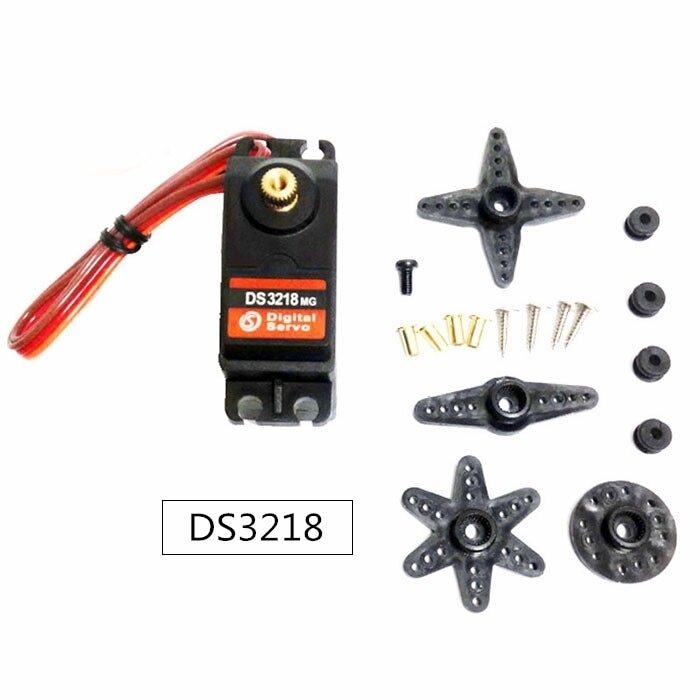

arm with DS3218

1 set TS100 tank chassis(with 9V 150rpm with encoder motor)

1 set 6 dof robotic arm bracket kit with 4pcs DS3218 servos+2pcs MG90S servo

•
• •
    1. Due to computer monitor and the actual shooting brightness and other reasons, there will be  a certain color difference.
    The final color please refer to our actual goods. Please know this before you buy it. Thank you !
    2. The picture we show is  100% Real  Object Photography.
    3. The size may have  2-3cm  differs due to the maunal measurement.
    4. For  the shipping convenience, the product is  unassembled .
