7 DOF Small Robotic Arm with Control Kit and 7pcs Metal Gear Servos Aluminum Alloy Material for Arduino DIY Smart Robot Project
- Color
-
- Black WiFi
- Golden WiFi
- Silver WiFi
- Black Bluetooth
- Golden Bluetooth
- Silver Bluetooth
- Black Handle
- Golden Handle
- Silver Handle
Item specifics
MG996R servo parameters
Dimension: 40mm × 19mm × 43mm
Weight: 55g
Operating Speed: 0.17sec / 60 degrees (4.8V no load)
Operating Speed: 0.13sec / 60 degrees (6.0V no load)
Stall Torque: 9 kg-cm (180.5 oz-in) at 4.8V
Stall Torque: 12 kg-cm (208.3 oz-in) at 6V
Operation Voltage: 4.8 - 7.2Volts
Gear Type: All Metal Gears
Color: Black
Connector Wire: Heavy Duty, 11.81" (300mm)
MG90S servo parameters
Pulling force: 1.6 kg/cm (4.8 V), 1.8 kg/cm (6 V)
Reaction rate: 0.10 sec/60 degree (4.8 V), 0.09 sec/60 degree (6 V)
Working voltage: 4.8-6.0 V
Size: 22.6*12.1*22.5mm
Cable length: 250 mm
Interface specification: JR / FP universal
Accessories: Multi-function swing arm, fixing screws
Scope of application: fixed wing, helicopter KT, small robot, robot model, etc.
Module pin description and schematic

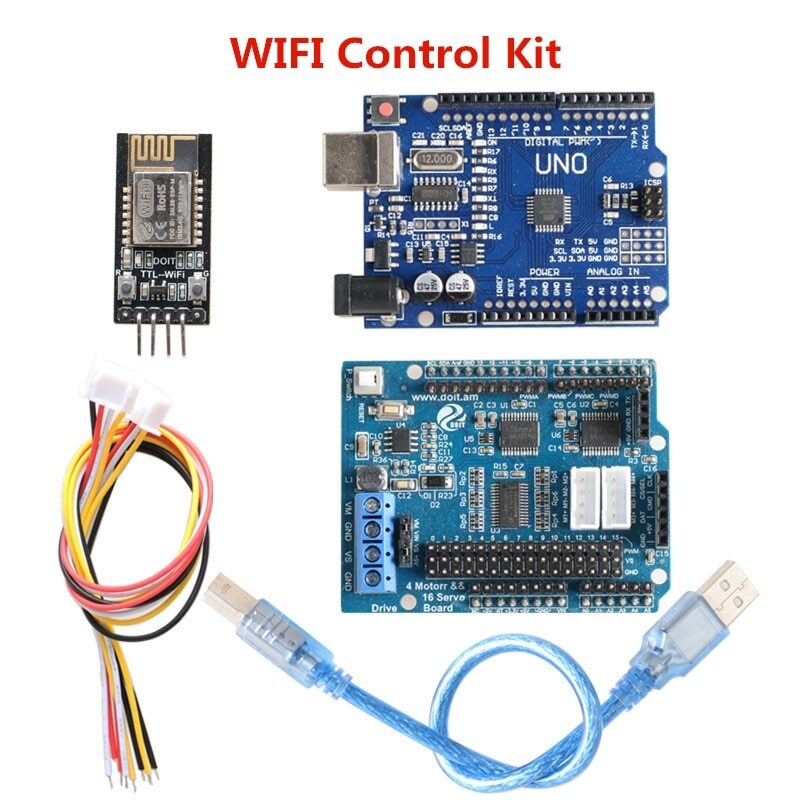

16-way servo and four-way motor drive board, using TB6612 four-way drive, PCA9685 for 16-way servo control.
Bring out Arduino UNO I/O pins
Power supply maximum input voltage 15V/DC
Reserve Bluetooth & WIFI module socket
Reserved PS2 handle socket
Four-way DC motor drive, single-channel maximum drive current 1.2A average / 3.2A peak.
The 16-way servo drives the pins, and the power can be switched by the external/internal power supply of the jumper cap.
Product technical specifications
1.power input
Motor power supply (VM): 4.5V ~ 36V, can be powered separately.
Steering gear power supply (VIN): 5 ~ 18V, can be powered separately.
2.single power supply use
Open circuit VM and VIN, (separately control the motor, 6 ~ 36V).
Open circuit VS and VIN, separately control the servo (6 ~ 18V).
Short-circuit VM and VIN while shorting VS and 5V. Simultaneously control the motor (6 ~ 18V) and 16 5V servos.
Note: Blue and green are randomly distributed.
Note:
For the convenience of transport, the robot arm is the bulk delivery.
The final color please refer to our actual goods. Please know this before you buy it. Thank you !
2. The picture we show is 100% Real Object Photography.
3. The size may have 2-3cm differs due to the maunal measurement.
4. For the shipping convenience, the product is unassembled .
