  • Black T300 Metal Tank Chassis Car+5DOF Robot Arm Mobile/Rotating Gimbal Kit 2pcs 9V Motors and High Torque Servo Remote Control
  • Black T300 Metal Tank Chassis Car+5DOF Robot Arm Mobile/Rotating Gimbal Kit 2pcs 9V Motors and High Torque Servo Remote Control
  • Black T300 Metal Tank Chassis Car+5DOF Robot Arm Mobile/Rotating Gimbal Kit 2pcs 9V Motors and High Torque Servo Remote Control
  • Black T300 Metal Tank Chassis Car+5DOF Robot Arm Mobile/Rotating Gimbal Kit 2pcs 9V Motors and High Torque Servo Remote Control
  • Black T300 Metal Tank Chassis Car+5DOF Robot Arm Mobile/Rotating Gimbal Kit 2pcs 9V Motors and High Torque Servo Remote Control
  • Black T300 Metal Tank Chassis Car+5DOF Robot Arm Mobile/Rotating Gimbal Kit 2pcs 9V Motors and High Torque Servo Remote Control

Black T300 Metal Tank Chassis Car+5DOF Robot Arm Mobile/Rotating Gimbal Kit 2pcs 9V Motors and High Torque Servo Remote Control

0 stars, based on 0 reviews
Price:
$165.48$165.48 / piece Order Processing Time: This item will be shipped out within 3 working days |FREE SHIPPING
Color
  • MG996R servo
  • MG995 servo
Quantity: - + 1998 items available

Item specifics

Brand Name:
Doit.am
Material:
Metal
Material:
Plastic
Model Number:
other
State of Assembly:
Unassembled Kit
Barcode:
Yes
Barcode number:
other
Flight Time:
other
Controller Battery:
other
Certification:
3C
3C:
Certificate
Certificate Number:
other
Features:
Remote Control
Type:
Tank
Remote Distance:
other
Warning:
other
Controller Mode:
MODE1
Warranty:
other
Dimensions:
other
Control Channels:
2 Channels
Remote Control:
No
Charging Voltage:
other
Design:
other
Age Range:
> 14 years old
Charging Time:
other

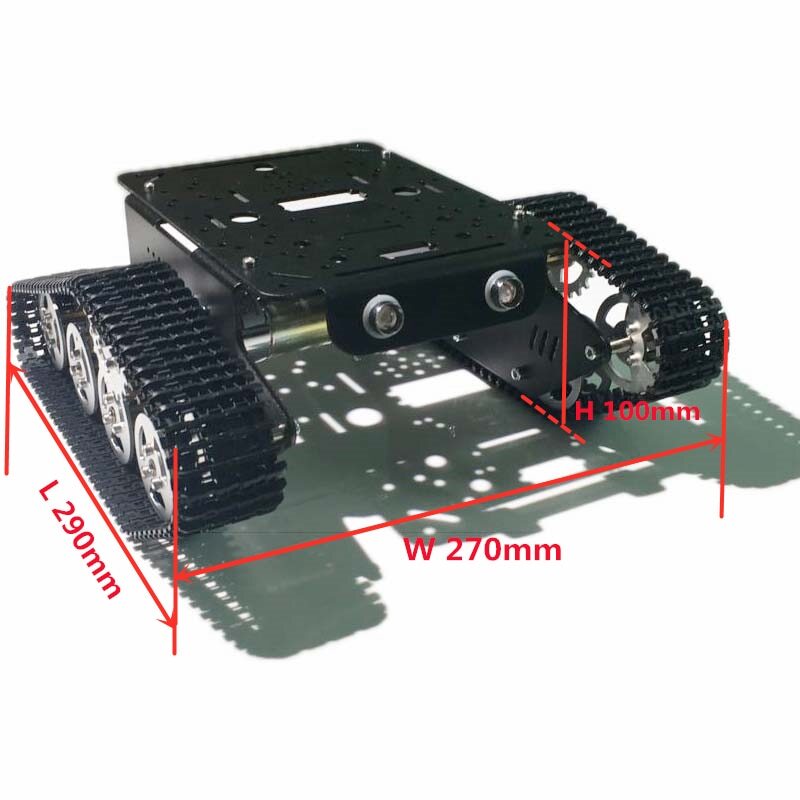

  • T300 intelligent tank chassis
  • Material: aluminum alloy
  • Surface treatment: sandblasting oxidation
  • Color: black
  • Track: engineering plastics
  • Size: about 290 × 270 × 100mm (length × width × height)
  • Weight: 1700g
  • 11

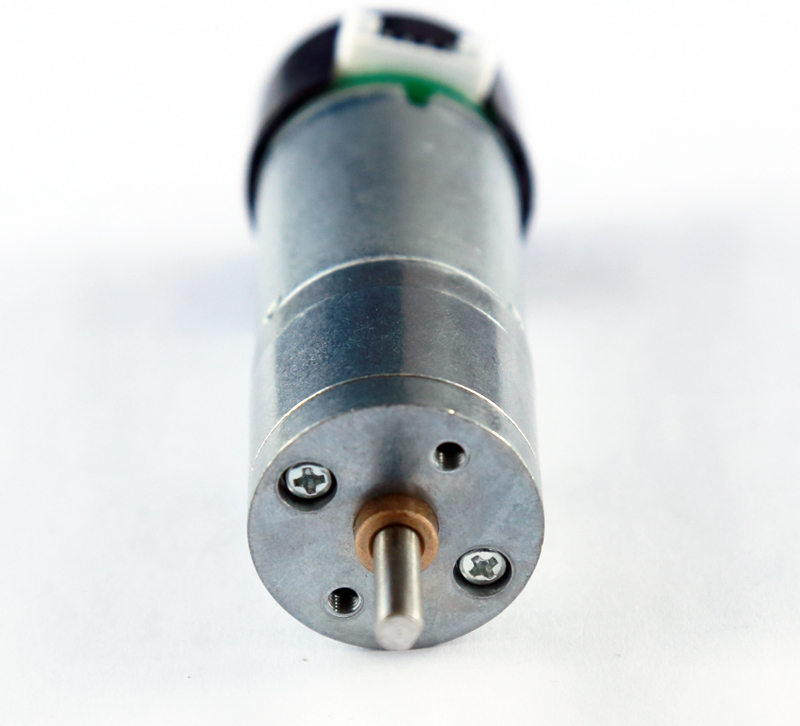

  • Motor Parameters：

  • Name: 9V 150rpm DC motor

  • Output speed: 150±10%rpm

  • Load current: 1200mA (Max)

  • Stall current: 4500mA(max)

  • Stall torque: 9.5kgNaN

  • Rated speed: 100±10%rpm

  • Rated torque: 3000gNaN

  • Noise: 56dB

  • Working voltage: 9V

  • Outside Shaft Length: 14.5mm

  • Shaft End Play: 0.05-0.50mm

  • Screw Size: M3.0

  • Dia. Of Shaft phi 4mm, D3.5

  • Encoder: 2pulses/circle

  • Sensor working voltage: 3-5V

​

MG996R servo parameters

  • Connector line: heavy duty, 11.81" (300 mm)
  • Colour: Black
  • Gear: metal gear
  • Working voltage: 4.8 - 7.2Volts
  • Stall torque: 12 kg - cm (208.3 oz.) at 6V
  • Stall torque: 9 kg - cm (180.5 oz.) at 4.8V
  • Working speed: 0.13sec/60 degrees (6.0V no load)
  • Working speed: 0.17sec/60 degrees (4.8V no load)
  • Weight: 55 grams
  • Product pull: 15kg/cm (6V)
  • Product size: 40.7mm×19.7mm×42.9mm

​1

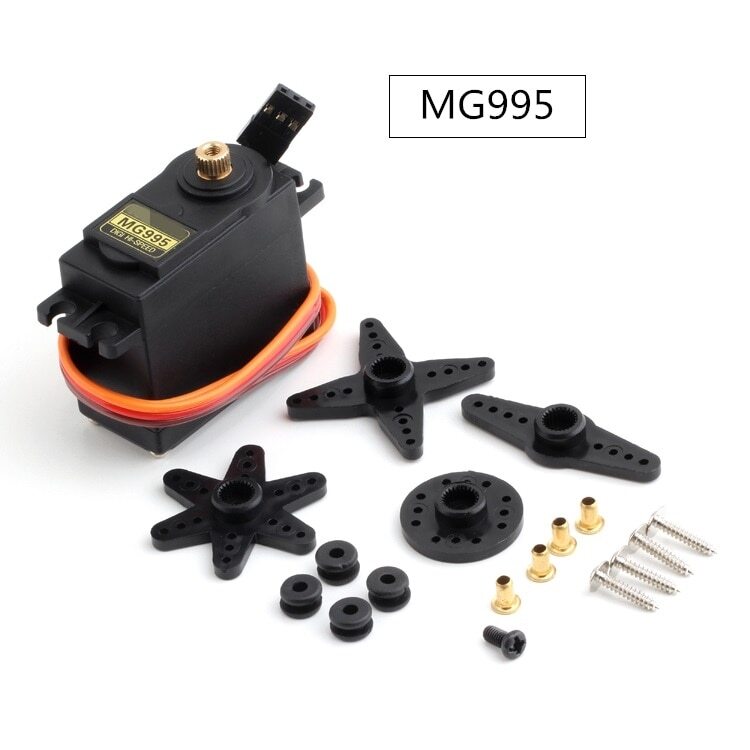

  • MG995 servo parameters
  • Size: 40.7×19.7×42.9mm
  • Weight: 55g
  • Voltage: 4-7.2V
  • Torque: 13kg/cm
  • Speed: 0.17sec/60° (4.8V)
  • Dead zone: 4us
  • Angle of rotation: 360°
  • Material: metal copper gear, hollow cup motor, double bearing

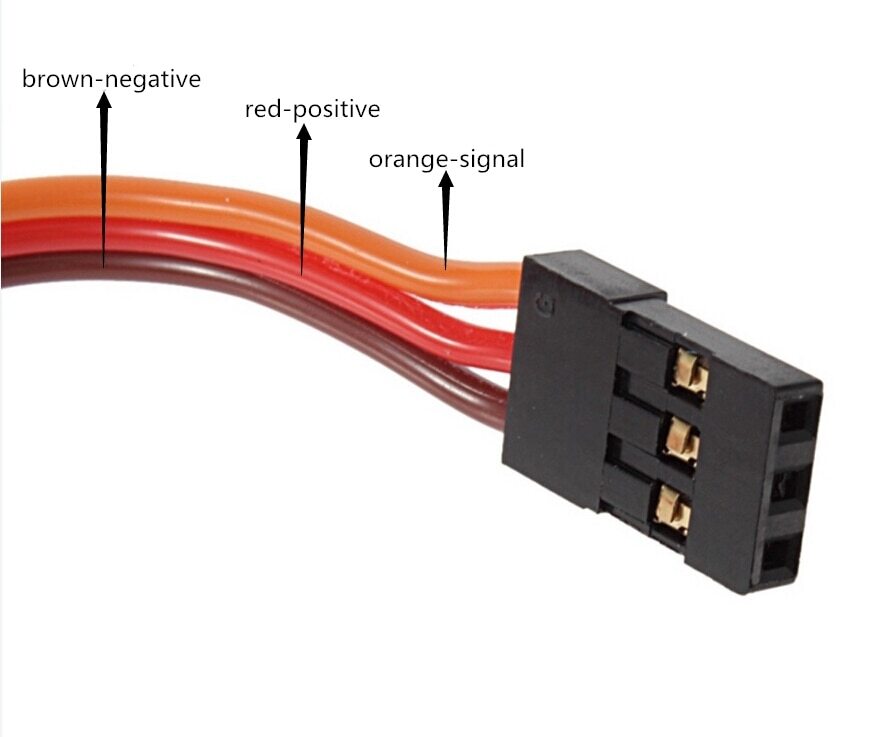

  • Interface: orange (signal), red (positive power supply), brown (power negative)
  •


Black tank chassis: 1pcs
Driving wheels : 2pcs
Bearing wheels: 10pcs
9V DC motor: 2pcs
Track : 2pcs
5DOF robot arm with gimbal stand: 1 set
MG996R servo/MG995 servo: 5pcs (optional)
Screw copper post: 1 set
Free send:
Android source code
Hexagon wrench: 1set
Note: Delivered in bulk, provide assembly instructions.
