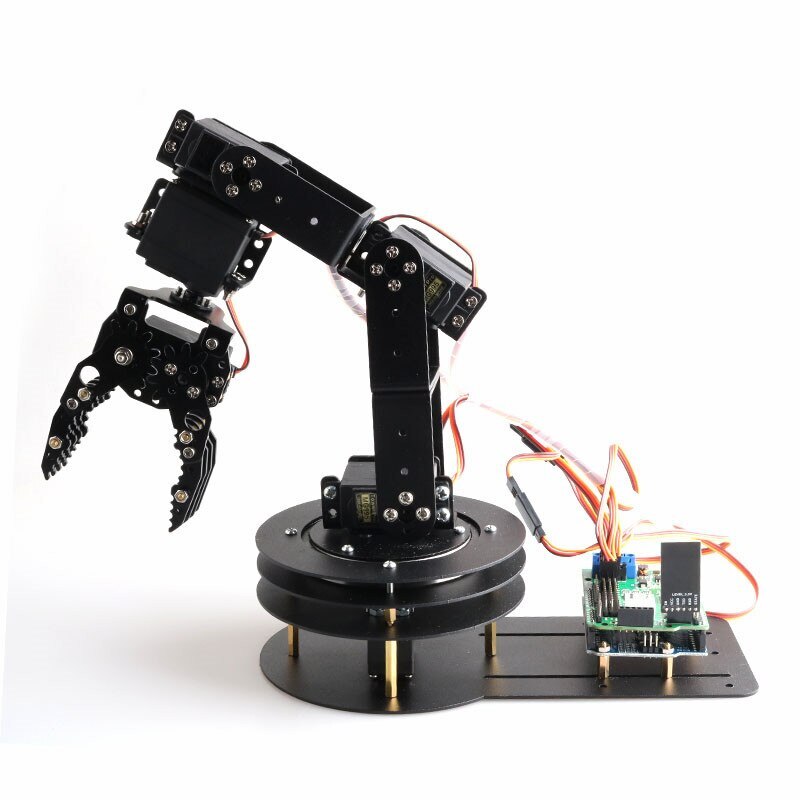

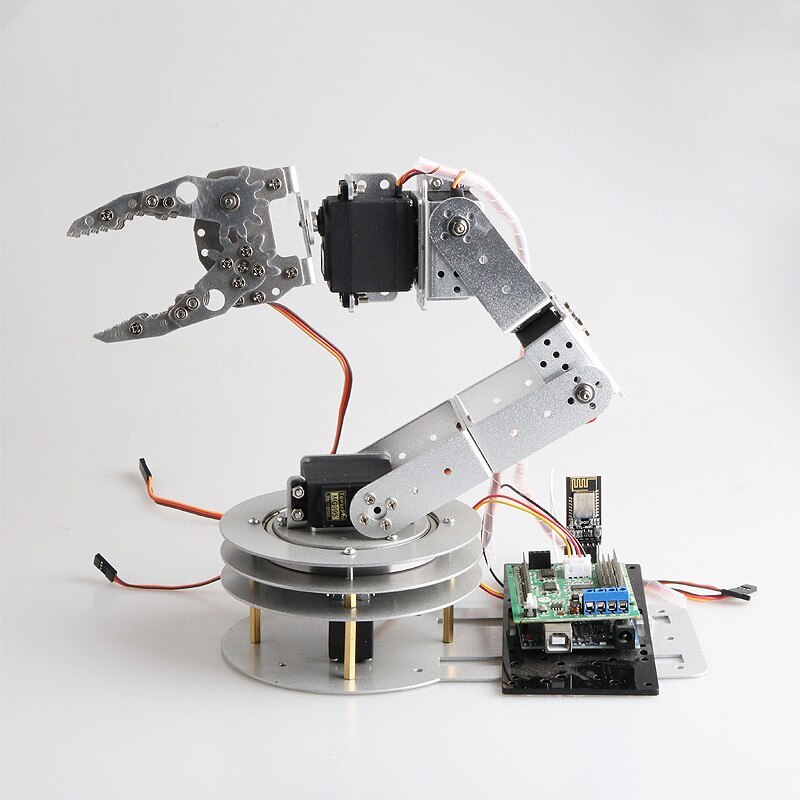

DIY 6DOF Robot Arm with G6 Robot Claw 360-degree All-metal Rotating Base for Arduino WiFi/Bluetooth/PS2 Control Kit for Choose

0 stars, based on 0reviews
$113.88$110.88 / piece
  • Black WiFi
  • Black Bluetooth
  • Black PS2
  • Silver WiFi
  • Silver Bluetooth
  • Silver PS2
Quantity: - + 2000items available
Inquiry Now

Item specifics

Brand Name:
Item Type:
One Size
Mfg Series Number:
Remote Control:
Version Type:
First Edition
Commodity Attribute:
By Animation Source:
In-Stock Items
Completion Degree:
Semi-finished Product
Original Package:
Puppets Type:


1.  The new 6-DOF manipulator, 360-degree all-metal rotating base, is more beautiful in appearance and more powerful in rotation. Can be used for research, education or various competitions.

2.  This mechanical arm complete set of metal fittings is made of hard aluminum alloy with a thickness of 2mm, which is very durable. The rotating base is a bright spot of the device. The base shape is very beautiful and the bearing base is perfectly designed. It consists of a set of metal discs and a large metal bearing. In this way, the circular large bearing and the copper post of the base can well bear the entire weight of the mechanical arm and the force generated by the operation, and the steering gear that controls the left and right rotation of the mechanical arm is well protected, making it more flexible and improving the base. The smoothness greatly extends their life. The large-diameter disc bearing of the robot arm makes it run more smoothly, so that the base can still operate freely under heavy load.

3.  If you need it, you can use our control kit to make it easier to control the arm and make the corresponding joints of the arm more comfortable. We also recommend that in this robot arm, the MG996R steering gear can be used for the joint with higher force, and the MG995 steering gear can be selected for the joint with relatively small force. The MG996r steering gear has a rotation angle of 180 degrees and the MG995 has a 360 degree steering gear.

Note: This product is all spare parts, please install according to our installation instructions.


G6 robot claw parameters

Paw material: hard aluminum alloy

Paw weight: about 40g (without steering gear)

Color: black and silver

Pitch maximum angular separation: 86mm

The overall length of the paw: 83mm (the overall longest length when the paw is closed)

The overall width of the paw is 1:150mm (the maximum overall width when the paw is opened)

The overall width of the paw is 2:55mm (the maximum overall width when the paw is closed)

The overall thickness of the paw: 54mm (with the maximum overall thickness of the steering paw)

MG996R servo parameters

Connector line: heavy duty, 11.81" (300 mm)

Colour: Black

Gear: metal gear

Working voltage: 4.8 - 7.2Volts

Stall torque: 12 kg - cm (208.3 oz.) at 6V

Stall torque: 9 kg - cm (180.5 oz.) at 4.8V

Working speed: 0.13sec/60 degrees (6.0V no load)

Working speed: 0.17sec/60 degrees (4.8V no load)

Weight: 55 grams

Product pull: 15kg/cm (6V)

Product size: 40.7mm×19.7mm×42.9mm

Three lines of steering gear connector: orange - signal red - positive brown - negative


Module pin description and schematic

16-way servo and four-way motor drive board, using TB6612 four-way drive, PCA9685 for 16-way servo control.

Bring out Arduino UNO I/O pins

Power supply maximum input voltage 15V/DC

Reserve Bluetooth & WIFI module socket

Reserved PS2 handle socket

Four-way DC motor drive, single-channel maximum drive current 1.2A average / 3.2A peak.

The 16-way servo drives the pins, and the power can be switched by the external/internal power supply of the jumper cap.


Product technical specifications

1.power input

Motor power supply (VM): 4.5V ~ 36V, can be powered separately.

Steering gear power supply (VIN): 5 ~ 18V, can be powered separately.

2.single power supply use

Open circuit VM and VIN, (separately control the motor, 6 ~ 36V).

Open circuit VS and VIN, separately control the servo (6 ~ 18V).

Short-circuit VM and VIN while shorting VS and 5V. Simultaneously control the motor (6 ~ 18V) and 16 5V servos.



Because the production batches are different, the development board has two colors, blue and green, and we ship them randomly.





PTZ base: 1 set
PTZ screw package: 1 set
G6 paw: 1 pcs
Multifunctional bracket: 4 pcs
Long U bracket: 3 pcs
L bracket: 1 pcs
Rudder plate: 6 pcs
Servo: 6 pcs (MG996R servo)
M3*8 flat head screws: 60 pcs
M3*12 flat head screws: 60 pcs
M3 nuts: 100 pcs
Robot bearing: 6 pcs
Send 2 pcs servo extension cables
A set WiFi/Bluetooth/PS2 control kit (optional)



1. Due to computer monitor and the actual shooting brightness and other reasons, there will be  a certain color difference.
The final color please refer to our actual goods. Please know this before you buy it. Thank you !
2. The picture we show is
100% Real  Object Photography.
3. The size may have
 2-3cm  differs due to the maunal measurement.
4. For  the shipping convenience, the product is  unassembled .
