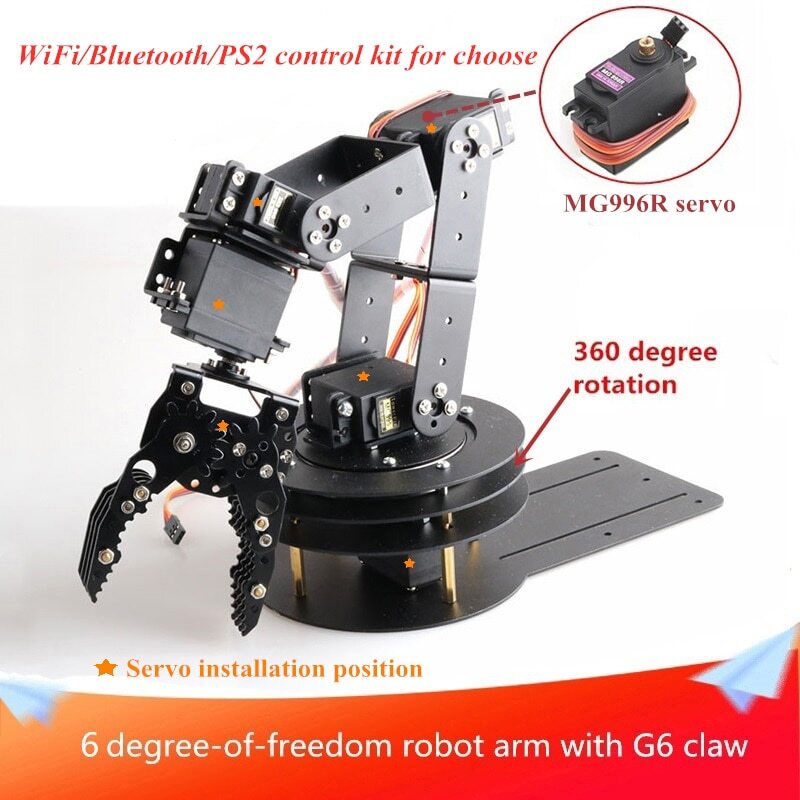

DIY 6DOF Robot Arm with G6 Robot Claw 360-degree All-metal Rotating Base for Arduino WiFi/Bluetooth/PS2 Control Kit for Choose
- Color
-
- Black WiFi
- Black Bluetooth
- Black PS2
- Silver WiFi
- Silver Bluetooth
- Silver PS2
Item specifics
1. The new 6-DOF manipulator, 360-degree all-metal rotating base, is more beautiful in appearance and more powerful in rotation. Can be used for research, education or various competitions.
2. This mechanical arm complete set of metal fittings is made of hard aluminum alloy with a thickness of 2mm, which is very durable. The rotating base is a bright spot of the device. The base shape is very beautiful and the bearing base is perfectly designed. It consists of a set of metal discs and a large metal bearing. In this way, the circular large bearing and the copper post of the base can well bear the entire weight of the mechanical arm and the force generated by the operation, and the steering gear that controls the left and right rotation of the mechanical arm is well protected, making it more flexible and improving the base. The smoothness greatly extends their life. The large-diameter disc bearing of the robot arm makes it run more smoothly, so that the base can still operate freely under heavy load.
3. If you need it, you can use our control kit to make it easier to control the arm and make the corresponding joints of the arm more comfortable. We also recommend that in this robot arm, the MG996R steering gear can be used for the joint with higher force, and the MG995 steering gear can be selected for the joint with relatively small force. The MG996r steering gear has a rotation angle of 180 degrees and the MG995 has a 360 degree steering gear.
G6 robot claw parameters
Paw material: hard aluminum alloy
Paw weight: about 40g (without steering gear)
Color: black and silver
Pitch maximum angular separation: 86mm
The overall length of the paw: 83mm (the overall longest length when the paw is closed)
The overall width of the paw is 1:150mm (the maximum overall width when the paw is opened)
The overall width of the paw is 2:55mm (the maximum overall width when the paw is closed)
The overall thickness of the paw: 54mm (with the maximum overall thickness of the steering paw)
MG996R servo parameters
Connector line: heavy duty, 11.81" (300 mm)
Colour: Black
Gear: metal gear
Working voltage: 4.8 - 7.2Volts
Stall torque: 12 kg - cm (208.3 oz.) at 6V
Stall torque: 9 kg - cm (180.5 oz.) at 4.8V
Working speed: 0.13sec/60 degrees (6.0V no load)
Working speed: 0.17sec/60 degrees (4.8V no load)
Weight: 55 grams
Product pull: 15kg/cm (6V)
Product size: 40.7mm×19.7mm×42.9mm
Three lines of steering gear connector: orange - signal red - positive brown - negative
Module pin description and schematic
16-way servo and four-way motor drive board, using TB6612 four-way drive, PCA9685 for 16-way servo control.
Bring out Arduino UNO I/O pins
Power supply maximum input voltage 15V/DC
Reserve Bluetooth & WIFI module socket
Reserved PS2 handle socket
Four-way DC motor drive, single-channel maximum drive current 1.2A average / 3.2A peak.
The 16-way servo drives the pins, and the power can be switched by the external/internal power supply of the jumper cap.
Product technical specifications
1.power input
Motor power supply (VM): 4.5V ~ 36V, can be powered separately.
Steering gear power supply (VIN): 5 ~ 18V, can be powered separately.
2.single power supply use
Open circuit VM and VIN, (separately control the motor, 6 ~ 36V).
Open circuit VS and VIN, separately control the servo (6 ~ 18V).
Short-circuit VM and VIN while shorting VS and 5V. Simultaneously control the motor (6 ~ 18V) and 16 5V servos.
Note:
Because the production batches are different, the development board has two colors, blue and green, and we ship them randomly.
The final color please refer to our actual goods. Please know this before you buy it. Thank you !
2. The picture we show is 100% Real Object Photography.
3. The size may have 2-3cm differs due to the maunal measurement.
4. For the shipping convenience, the product is unassembled .
