MC110 Chassis Car with High Hardness Metal Wheels Black Surround Shell Kit 4pcs DC Motors DIY Car Chassis Accessories

0 stars, based on 0reviews
Price:
$112.50$107.50 / piece
Color
  • 33GB-520 motor
  • 12V motor encode
Quantity: - + 2651items available
Inquiry Now

Item specifics

Brand Name:
Doit.am
Origin:
CN(Origin)
Material:
Metal
Model Number:
MC110
State of Assembly:
Ready-to-Go
Barcode:
Yes
Barcode number:
other
Flight Time:
2h
Controller Battery:
other
Certification:
3C
3C:
Certificate
Certificate Number:
other
Features:
Remote Control
Type:
Tank
Remote Distance:
300m
Warning:
other
Controller Mode:
MODE1
Warranty:
other
Dimensions:
other
Control Channels:
2 Channels
Remote Control:
Yes
Charging Voltage:
other
Design:
other
Age Range:
> 8 years old
Charging Time:
other
Description

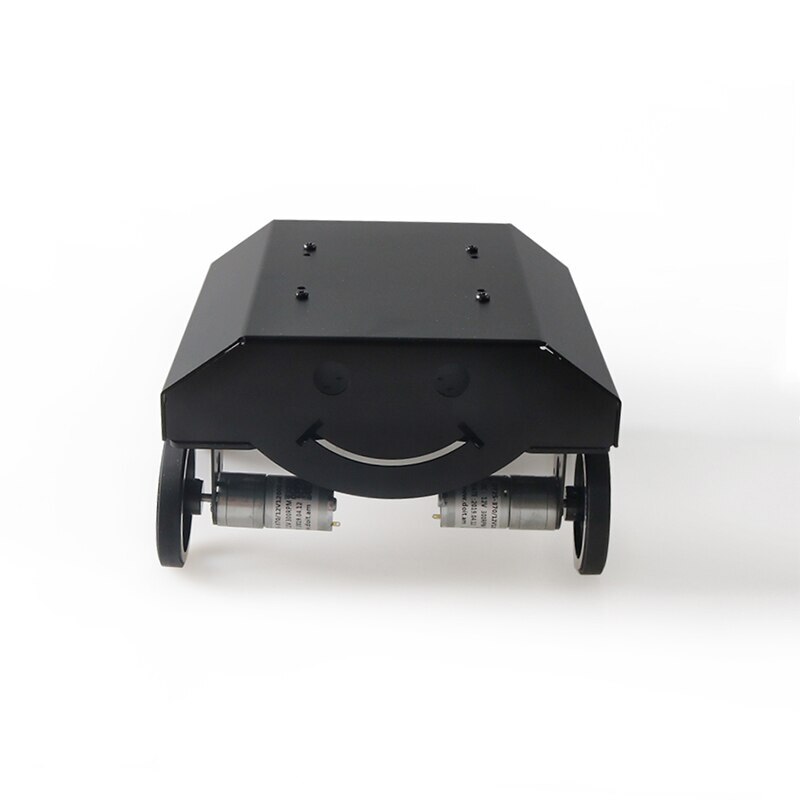

Name: MC110 surround shell chassis
Colour: black
Body material: 2mm steel
Weight: about 1.3kg
Motor: 33GB-520 motor/12V encode motor
Wheel: high hardness metal wheels
Load: about 4kg

17

The first layer panel

The second layer panel

9

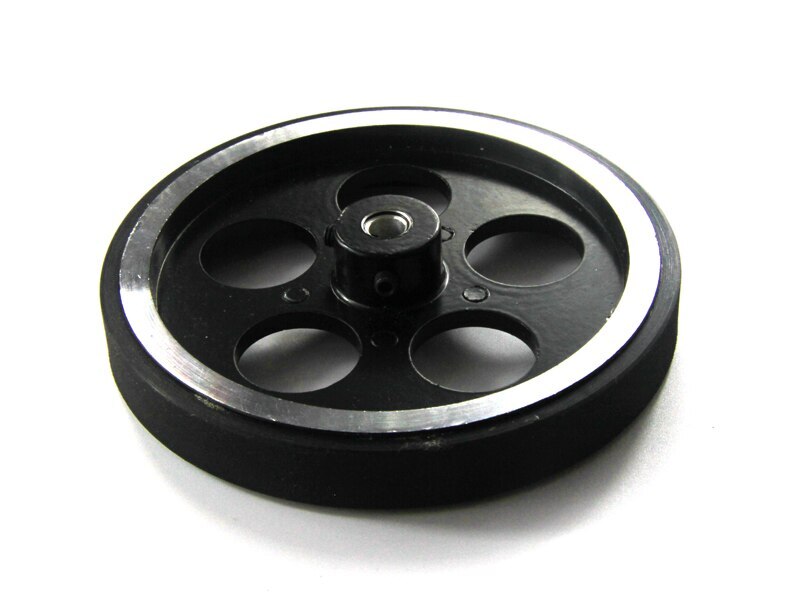

Wheel parameters

Wheel material: aluminum alloy
Outside material: rubber
Perimeter: 200mm
Wheel diameter: 65mm
Tread width: about 11mm
Innerhole size (IS): 4/5/6/7mm (suitable for DC motors with motor shaft diameters of 4/5/6/7mm)
Coupling: inline
Bearing capacity: 5-50kg

33GB-520 motor parameters

Voltage range: 6V-12V

No-load speed: 170-350rpm

Rated voltage: DC12V

No-load current: 100mA

Weight: 100g

1514



12V 300rpm encode motor parameters

Model: 25GA-310

Name: 12V DC motor with code wheel

No-load current: about 220mA

Load torque: about 0.6kg.cm current 500mA

Power: 1.6w

Blocking torque: about 2kg.cm current 2A

Voltage: 12V

Speed: 300rpm

Shaft diameter: 4mm

1




2 pcs black metal panels
4 pcs metal wheels
4 pcs metal couplings
4 pcs DC motors (optional)
4 pcs motor brackets
Send 1 set screws
Note:
Ship in bulk.
Support DIY and remote control.
