RC Metal Tank Chassis 4wd Robot Crawler Creeper Track Chain Car Vehicle Mobile Platform Tractor DIY Toy Kit Heavy Load T800

Tank Chassis Parameters:

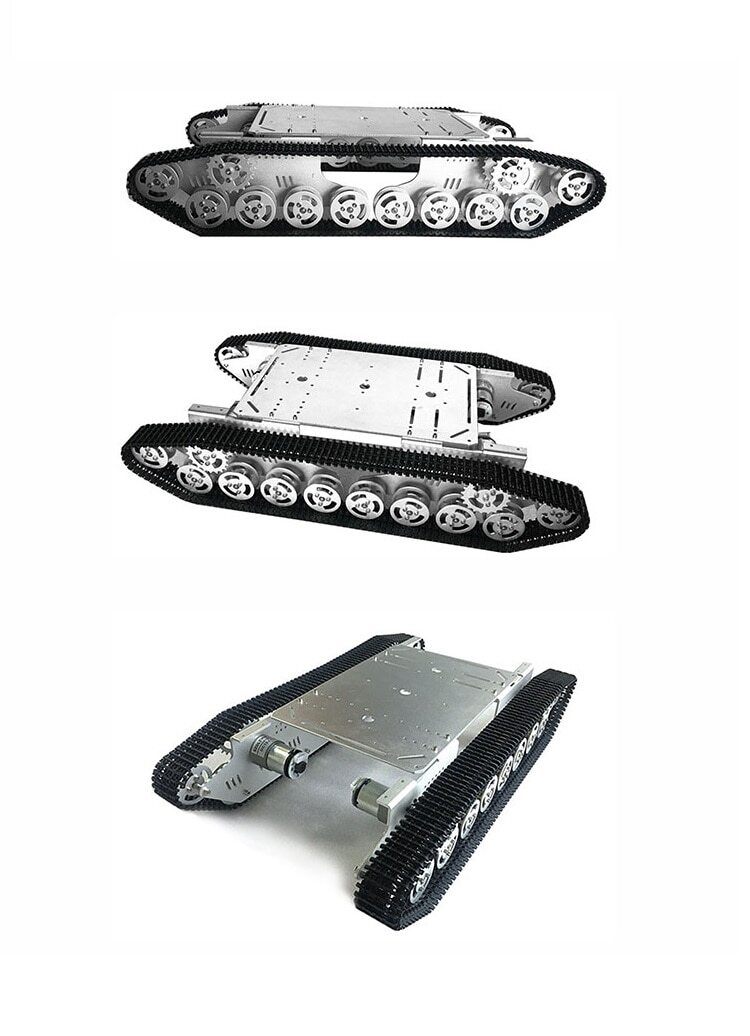

• Name: T800 Intelligent track car/tank chassis

• Material: aluminum alloy

• Wheel: metal

• Track: engineering plastic

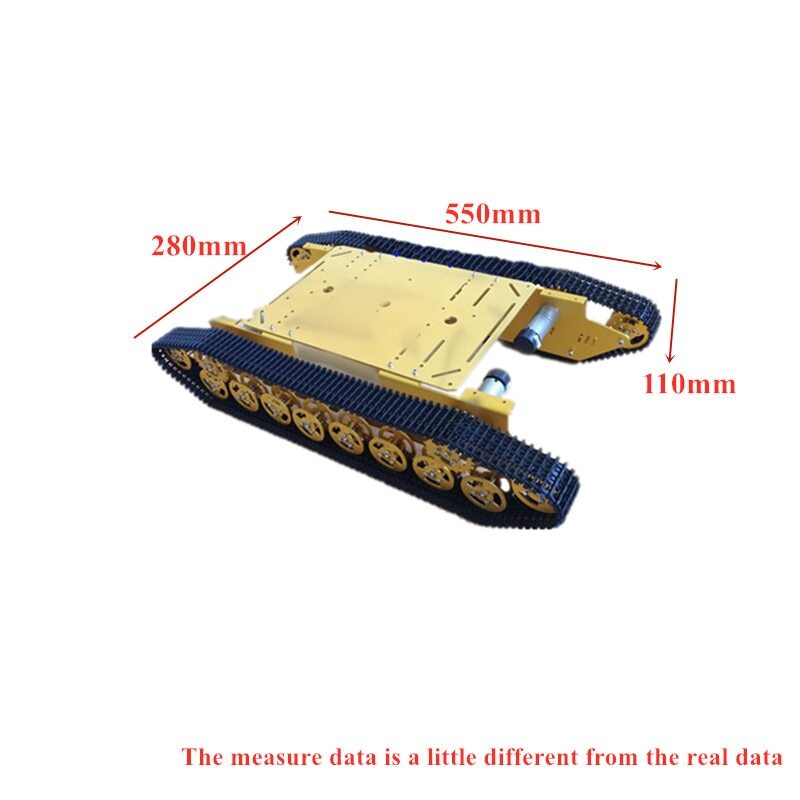

• Product size: about 550*280*110mm (length * width * height)

• Weight: 3800g

• Color: silver/yellow

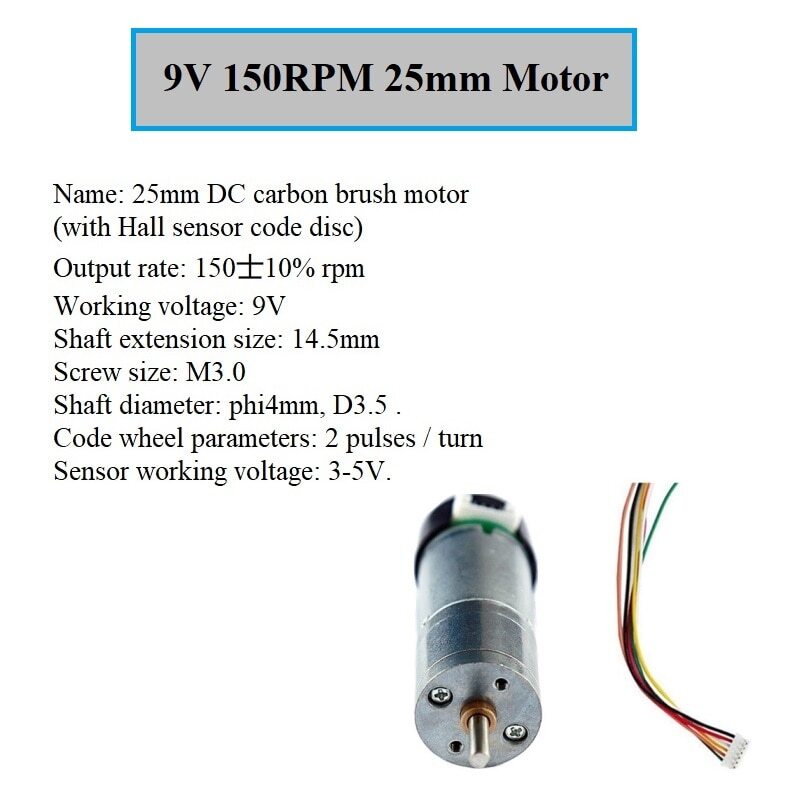

Motor parameters(25mm 9V 150rpm DC Motor)

• Name: 25mm gear motor

• Output speed: 150±10%rpm

• No_load Current: 200mA (Max)

• Stall current: 4500mA(max)

• Stall torque: 9.5kgNaN

• Rated speed: 100±10%rpm

• Rated torque: 3000gNaN

• Rated Current: 1200mA (Max)

• Noise: 56dB

• Working voltage: 9V

• Outside Shaft Length: 14.5mm

• Shaft End Play: 0.05-0.50mm

• Screw Size: M3.0

• Dia. Of Shaft phi4mm, D3.5

• encoder: 2 pulses/circle

12V 300rpm motor no Code wheel

• Voltage: 12V DC

• RPM: 300RPM

• Current: 0.55A

• Diameter: 25m

12V 300rpm motor with  Code wheel

Track and Wheels Parameters

Silver Chassis:

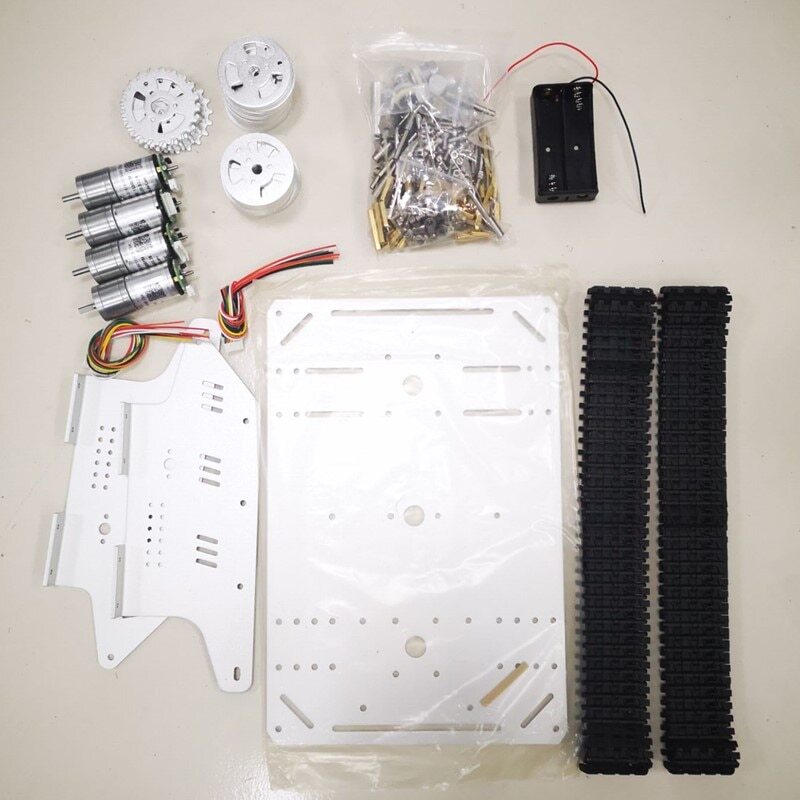

• silver T800 tank chassis: 1set (including 4 motors)

Yellow Chassis:

• yellow T800 tank chassis: 1set (including 4 motors)
