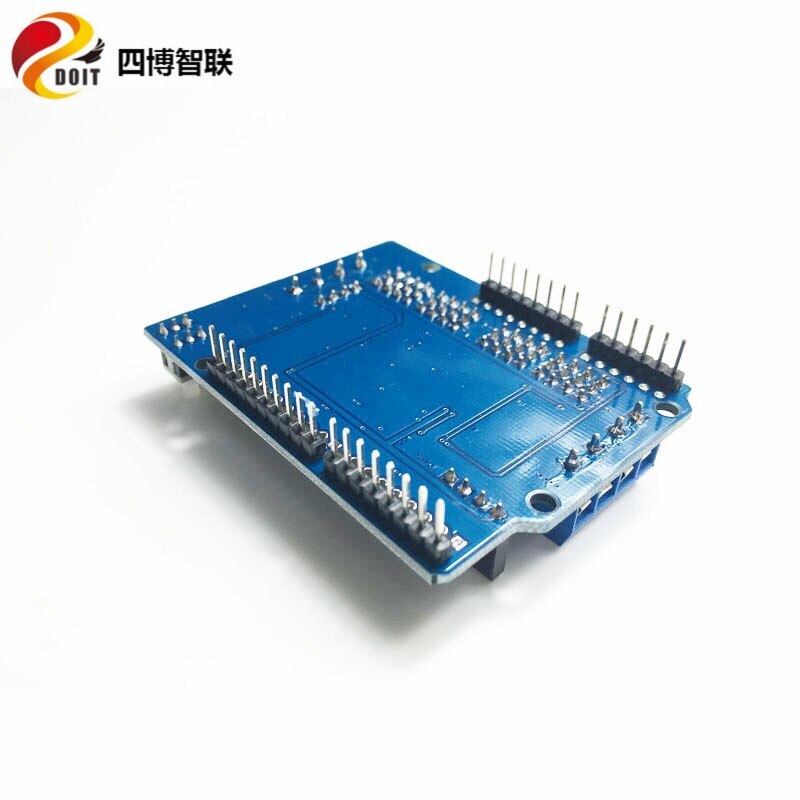

SZDOIT 2 channel Motor ＆ 16 channel Servo Controller Expansion Board Servos Motors Control Module Drive Board for Arduino

Parameters:

• Dimensions: 51*43.5mm
• Installation size: 42*35.5mm
• Simultaneous control of the number of servos: 16
• Storage space: 4M
• Control accuracy: 1us
• USB interface: support
• External wifi module: support
• External MCU: Support
• External wireless control: support
• Support windows7, windows8, windows10, windows xp driver

Features:

• 2-channel Motor & 16-channel Servo Drive Shield is a motor and servo drive module compatible with Arduino UNO and ESPduino;
• The module is designed with a plug-in board and can be directly connected to the Arduino UNO or ESPduino board;
• This product can control 2-way DC motors (4.5~36V) and 16-way servos (5~18V) at the same time, suitable for mobile robot drive control with robot arm

Product technical specifications:

• power input:

1. Motor power supply (VM): 4.5V ~ 36V, can be powered separately;
2. Servo power supply (VIN): 5 ~ 18V, can be powered separately;

• single power supply use:
•

1. Short-circuit VM and VIN, (separately control the motor, 6 ~ 36V);
2. Short-circuit VS and VIN, separately control the servo (6 ~ 18V);
3. Short-circuit VM and VIN while shorting VS and 5V. Simultaneous control of motor (6 ~ 18V) and 16 5V servo

• Motor drive part operating current Io: ≤ 1.2A;
• maximum power dissipation: 4W (T=90°C)
• control signal input level: high level: 2.3V ≤ VIH ≤ VIN; low level: -0.3V ≤ VIL ≤ 1.5V
• working temperature: -25 ° C ~ +125 ° C
• drive form: dual high power H-bridge drive
• module weight: about 46g

Shipping list :

1 piece module

Note:

More documents can be downloaded at wiki.doit.am.
