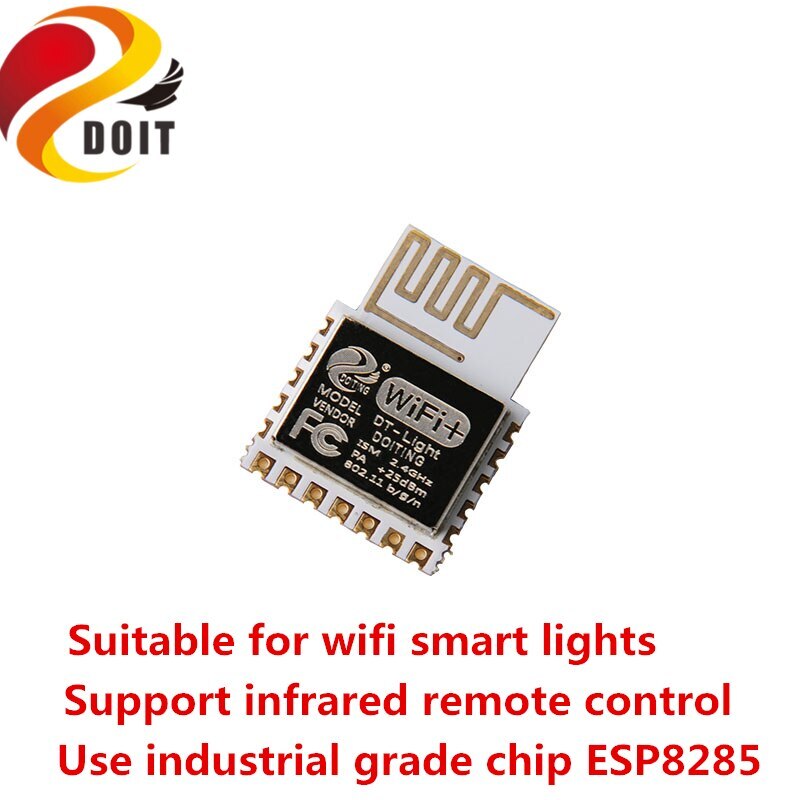

SZDOIT 2.4Ghz Wireless RC Module Wifi Switch Module For Light Smart Home Sensor Support Infrared Remote Control for Arduino

Features:

Module characteristics:

• Built-in ESP WiFi chip
• Can support multiple LED control
• Built-in LED drive control algorithm, support dimming color, rhythm control
• Support local LAN priority control
• Support cloud control
• Support infrared remote control
• Support Google Assistant, Amazon Alexa, Tmall Elf, Xiaodu Intelligent, Jingdong, Xiao Ai, and other speakers
• Support Android and iOS device control

Wifi characteristics:

• Support for 802.11 b/g/n/e/i
• Support AP distribution mode
• Support OTA remote upgrade
• Support for mass production testing

Module information:

• Bulb light control pin: 5
• Operating temperature range: -40°C~ +125°C
• Module size: 15mm × 20mm
• Module color: white

Application scenario:

• Bulb
• Light strip
• Ceiling light
• Spotlight
• Other commercial lighting and scene lighting

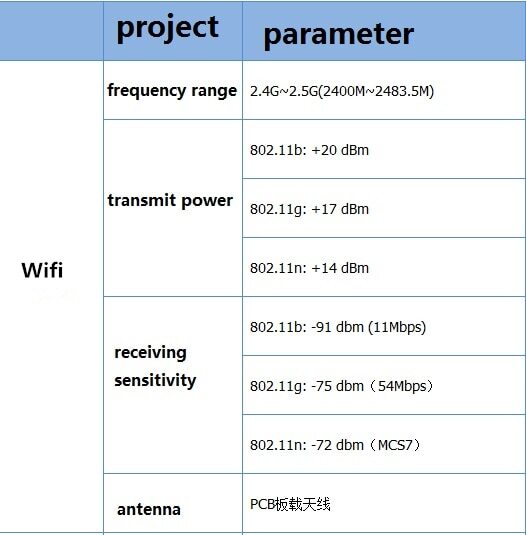

Product parameters:

• The core processor of the DMP-L1 module uses the industrial grade chip ESP8285. The chip integrates an enhanced version of Tensilica's L106 Diamond Series 32-bit core processor in a smaller package. The ESP8285 has full Wi-Fi networking capabilities that can be used independently of the controller, and its built-in cache provides significant CPU performance;
• The DMP-L1 module supports the standard IEEE 802.11 b/g/n/e/i protocol and the complete TCP/IP protocol stack;
• The DMP-L1 module uses built-in Flash to allow the chip to operate from -40°C to 125°C;
• The DMP-L1 module has a built-in LED control algorithm that allows its external IO to control the LED drive;
• The DMP-L1 module has a built-in DoHome cloud service that can be controlled using the DoHome series of apps;
• The DMP-L1 module contains an external infrared interface that supports both infrared remote control;
• The DMP-L1 module has a built-in factory test program that allows the factory to quickly produce tests.

Main technical parameters of the module:

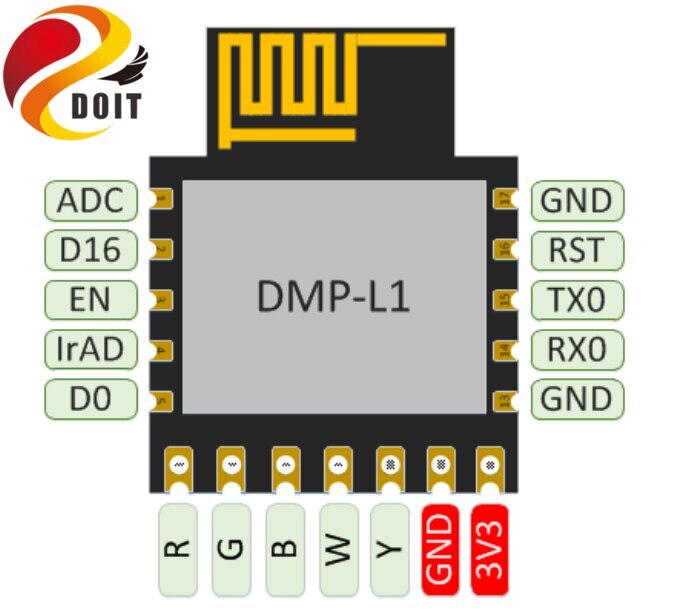

DMP-L1 interface definition:

Dimensions:

Note:

• The module supply voltage is 3.3V DC and the current is 500mA or more;
• Wi-Fi module IO maximum output current is 12mA;
• Wi-Fi module NRST pin is active low; EN enable pin is active high;
• The Wi-Fi module enters the upgrade mode: GPIO0 is at a low level, then the module is reset and powered on; the Wi-Fi module enters the normal working mode: GPIO0 is at a high level, and the module is reset and powered;
• The RXD of the Wi-Fi module is connected to the TXD of the external MCU, and the TXD of the Wi-Fi module is connected to the RXD of the external MCU.
• More documents can be downloaded at wiki.doit.am.

Shipping list:

• 1 piece module
