  • Wifi/Bluetooth/PS2 Control 7DOF Robotic Arm ABB Robotic Model Operating Arm with 360 Degree Rotating Base
  • Wifi/Bluetooth/PS2 Control 7DOF Robotic Arm ABB Robotic Model Operating Arm with 360 Degree Rotating Base
  • Wifi/Bluetooth/PS2 Control 7DOF Robotic Arm ABB Robotic Model Operating Arm with 360 Degree Rotating Base
  • Wifi/Bluetooth/PS2 Control 7DOF Robotic Arm ABB Robotic Model Operating Arm with 360 Degree Rotating Base
  • Wifi/Bluetooth/PS2 Control 7DOF Robotic Arm ABB Robotic Model Operating Arm with 360 Degree Rotating Base
  • Wifi/Bluetooth/PS2 Control 7DOF Robotic Arm ABB Robotic Model Operating Arm with 360 Degree Rotating Base

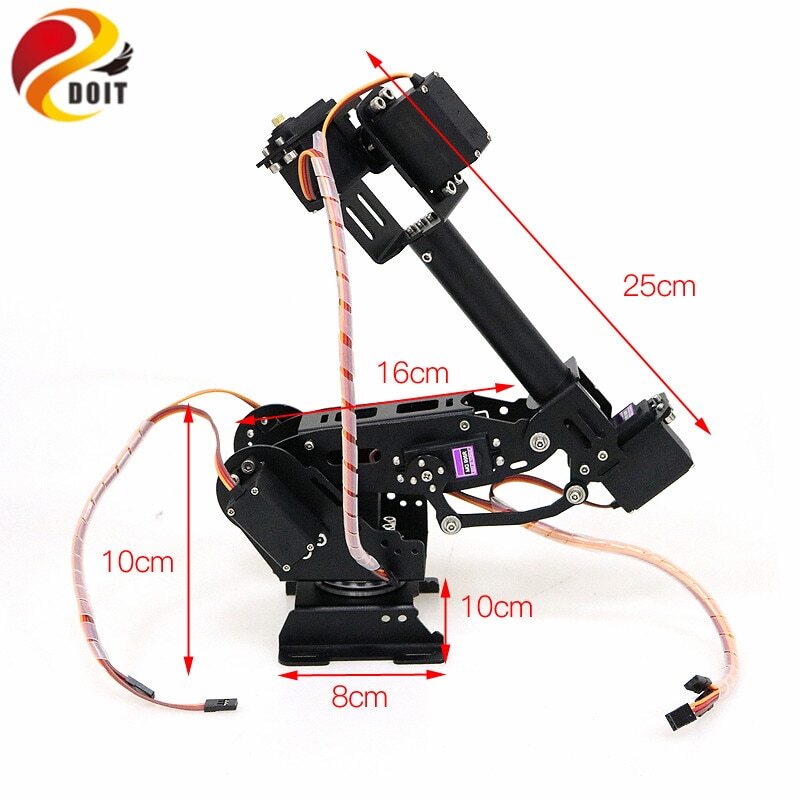

Wifi/Bluetooth/PS2 Control 7DOF Robotic Arm ABB Robotic Model Operating Arm with 360 Degree Rotating Base

0 stars, based on 0reviews
Price:
$147.00$101.00 / piece
Color
  • Silver Package 1
  • Silver Package 2
  • Silver Package 3
  • Silver Package 4
  • Silver Package 5
  • Black Package 1
  • Black Package 2
  • Black Package 3
  • Black Package 4
  • Black Package 5
  • Golden Package 1
  • Golden Package 2
  • Golden Package 3
  • Golden Package 4
  • Golden Package 5
Quantity: - + 500items available

Item specifics

Brand Name:
SZDoit
Item Type:
Model
Gender:
Unisex
Size:
25cm
Mfg Series Number:
ROBOT
Remote Control:
Yes
Age Range:
> 14 Years old
Age Range:
> 8 years old
Commodity Attribute:
Assembly
By Animation Source:
China
Completion Degree:
Finished Goods
Theme:
Robots
Soldier Accessories:
Soldier Parts and Components
Material:
Metal
Original Package:
yes
Puppets Type:
Model

Package List

Black Package 1=Black 6 DOf robot arm frame+Black G6 gripper(Without servo) Black Package 2=Black Package 1+ 7pcs MG996r servos Black Package 3= Black Package 2+ wifi control kit Black Package 4= Black Package 2+ bluetooth control kit Black Package 5=Black Package 2+ PS2 control kit Silver, golden package are same, just the color are different.

Note:

1. The package is not included the battery. 2. The product is unassembled, pls visit wiki.doit.am or leave a mail box to us.

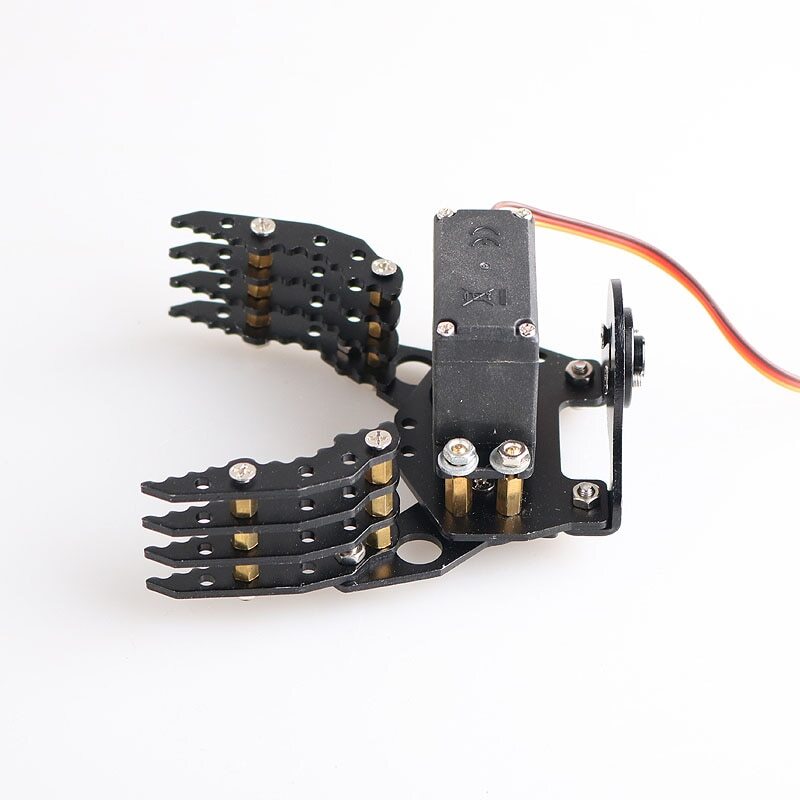

G6 Gripper Parameters:

Material: hard aluminum alloy Weight: about 40g (without servo) The maximum opening angle spacing: 86mm Overall length: 83mm (overall length of the longest claws when closed) Overall Width 1: 150mm (maximum overall width of the paw when open) Overall Width 2: 55mm (maximum overall width of the paw when closed) Overall thickness: 54mm (maximum overall thickness of the belt steering paw) G6 gripper installation manual: https://bbs.doit.am/forum.php?mod=viewthread&tid=360&extra=page%3D1

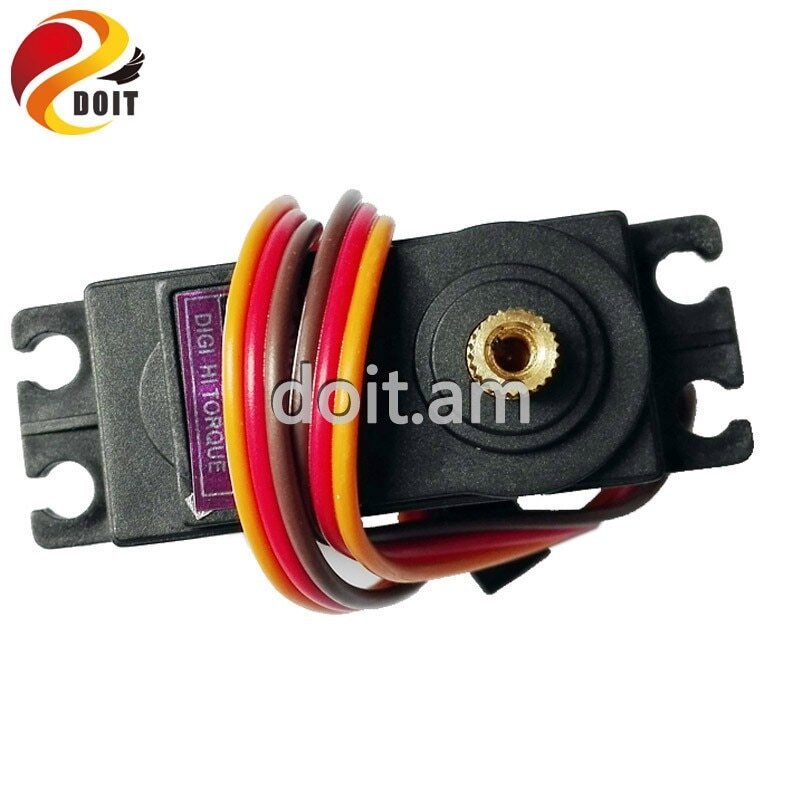

MG996r Servo Parameters:

Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc... Great for truck, Boat, Racing Car, Helicopter and Airplane. Power Supply: Through External Adapter. Stable and Shock Proof. - Metal Gear - Double Ball Bearing - Connector Wire Length 300mm Dimension : 40mm x 19mm x 43mm Weight : 55g Operating Speed : 0.17sec / 60 degrees (4.8V no load) Operating Speed : 0.13sec / 60 degrees (6.0V no load) Stall Torque : 13 kg-cm (180.5 oz-in) at 4.8V Stall Torque : 15 kg-cm (208.3 oz-in) at 6V Operation Voltage : 4.8 - 7.2Volts Gear Type: All Metal Gears Connector Wire: Heavy Duty, 11.81" (300mm)

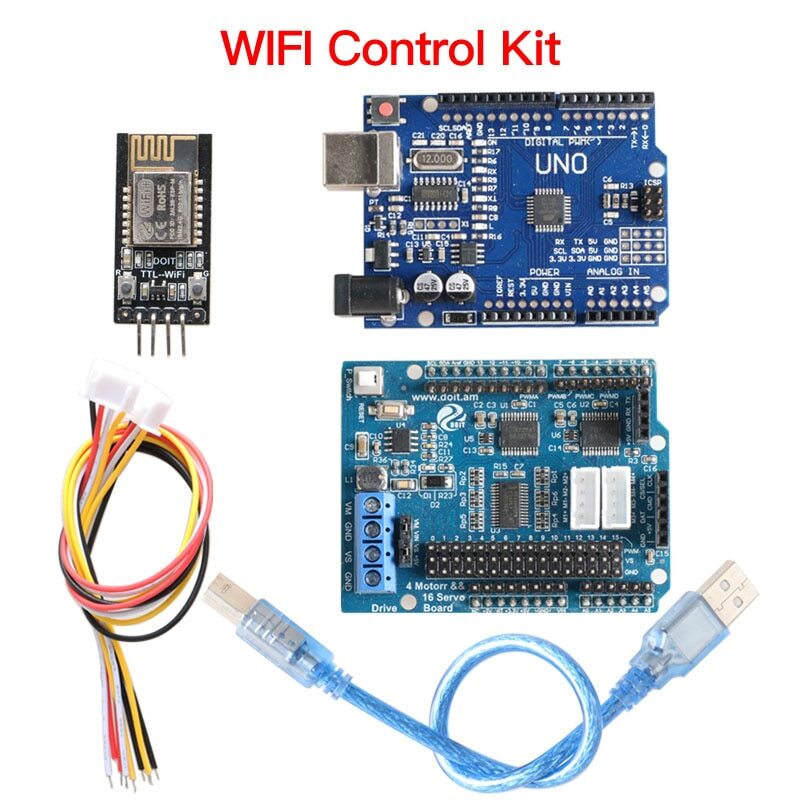

WiFi control kit:

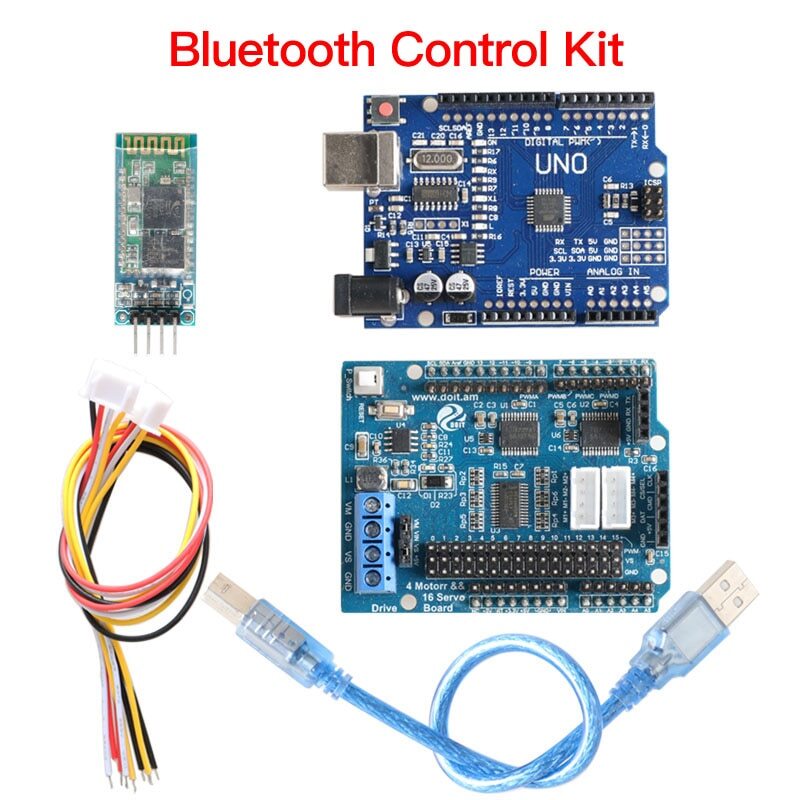

Bluetooth control kit:

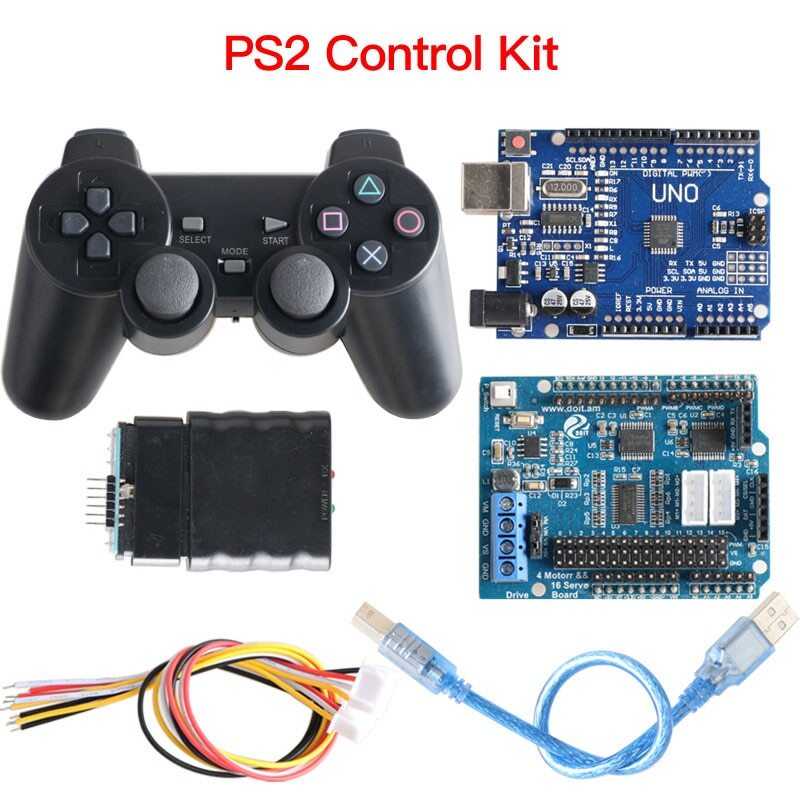

PS2 control kit:
