Wireless Remote Control 4WD C300 Metal Smart Rc Robot Car Chassis Kit 97mm Mecanum Wheel High Torque DC Motor DIY For Arduino

Features:

• The robot is made of high-quality aluminum alloy, which is beautiful and durable;
• The robot is equipped with 4 high-torque motors, provides sufficient horsepower, and has the function of speed feedback;
• The robot is equipped with four 97mm Mecanum wheels, the chassis can easily rotate and drive in all directions;
• The robot has a wireless wifi / Bluetooth / handle control kit, you can easily control its movement through the handle or wireless handle, which is very convenient;
• Large load, easy to install, free source code, app.

C400 metal smart car chassis:

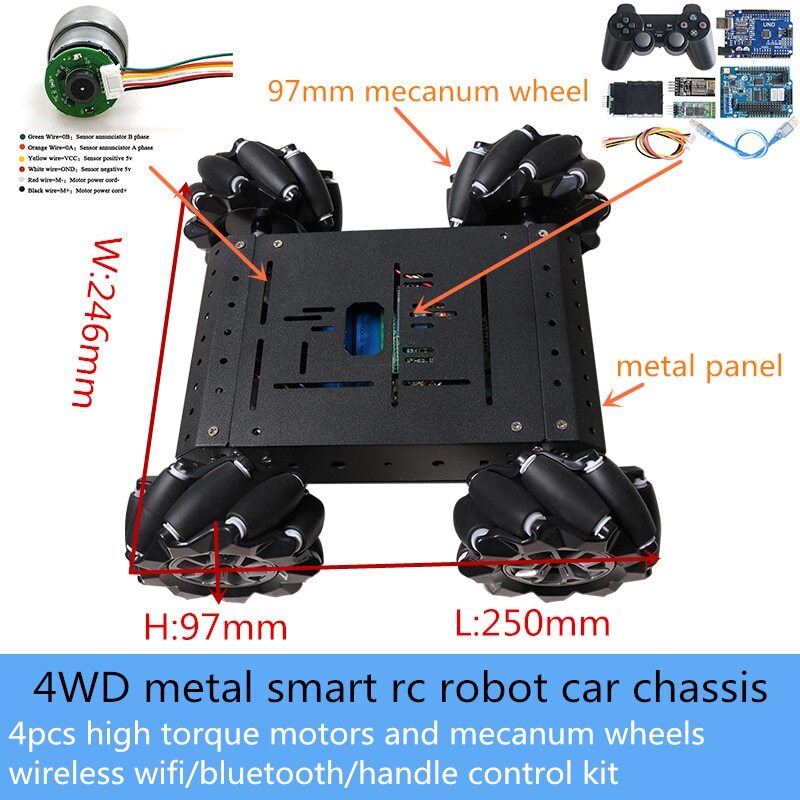

• Name: C400 Mecanum Omnidirectional Robot Car
• Main material: aluminum alloy
• Colour: Black
• Size: 250 * 246 * 97mm (length * width * height)
• Motor: 37GB-520 motor (speed feedback)
• Wheel: 97mm mecanum wheel
• Weight: about 1.6KG
• Load: about 5-9KG (the load weight is determined by the motor speed and voltage)
• Control kit: wireless wifi / Bluetooth / handle (free: source code, app)

37GB-520 motor:

• Name: 37GB-520
• Rated voltage: 12V
• Rated power: 4.8W
• Motor type: permanent magnet brush
• Stall current: 2.8A
• Blocking torque: 10kgf.cm
• Rated current: 360mA
• Rated torque: 1.0kgf.cm
• Original speed: 11000rpm
• Reduction ratio: 1:30
• Number of pulses: 660
• Single phase: 330
• Type: AB phase incremental Hall encoder

97mm mecanum wheel:

• Name: Mecanum Wheel
• Colour: Black
• Weight: 150 grams (single)

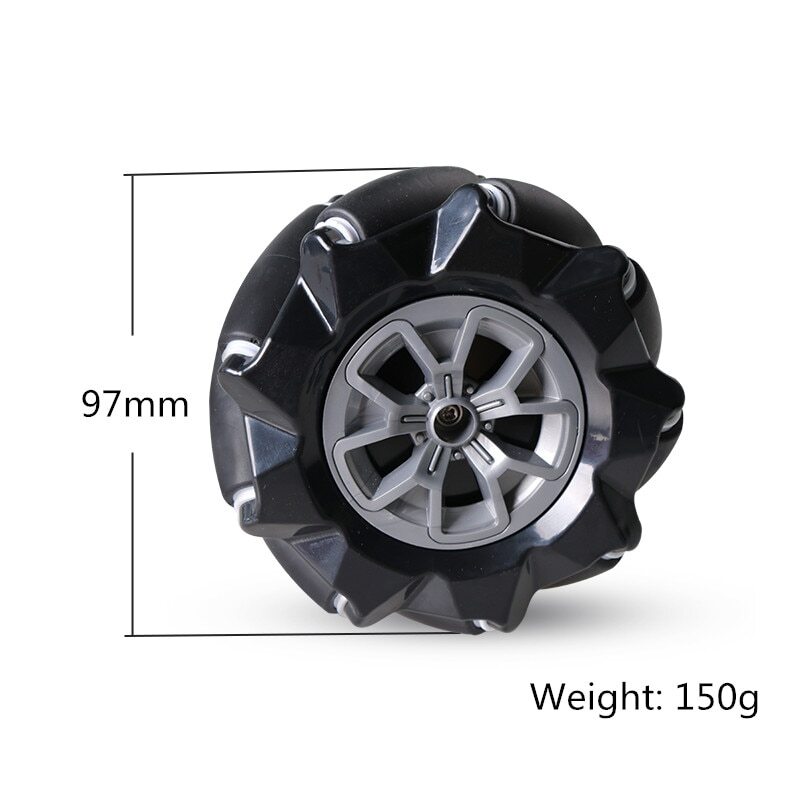

• Inner wheel diameter: 60mm
• Outer wheel diameter: 97mm
• Thickness: 47mm
• Number of sub-rounds: 9
• Load-bearing: 10k'g (4pcs functions)

Wireless control kit:

Module pin description and schematic:

• 16-channel servo & 4-channel motor driver board, driven by TB66124, PCA9685 for 16-channel servo control;
• Bring out the Arduino UNO I/O pin;
• The maximum input voltage of the power supply is 15V/DC;
• Reserve Bluetooth & WIFI module sockets;
• Reserve PS2 handle socket;
• Four-way DC motor drive, single-channel maximum drive current 1.2A average / 3.2A peak;
• 16-way servo drive pins, power supply can be switched by external/internal power supply of jumper cap.

Product technical specifications:

power input:

• Motor power supply (VM): 4.5V ~ 36V, can be powered separately;
• Servo power (VIN): 5 ~ 18V, can be powered separately;

Single power supply use:

Module pin description and schematic:

• 16-channel servo & 4-channel motor driver board, driven by TB66124, PCA9685 for 16-channel servo control;
• Bring out the Arduino UNO I/O pin;
• The maximum input voltage of the power supply is 15V/DC;
• Reserve Bluetooth & WIFI module sockets;
• Reserve PS2 handle socket;
• Four-way DC motor drive, single-channel maximum drive current 1.2A average / 3.2A peak;
• 16-way servo drive pins, power supply can be switched by external/internal power supply of jumper cap.

Product technical specifications:

power input:

• Motor power supply (VM): 4.5V ~ 36V, can be powered separately;
• Servo power (VIN): 5 ~ 18V, can be powered separately;

Single power supply use:

• Open circuit VM and VIN, (separately control the motor, 6 ~ 36V);
• Open circuit VS and VIN, separately control the servo (6 ~ 18V);
• Short-circuit VM and VIN while shorting VS and 5V. Simultaneous control of motor (6 ~ 18V) and 16 5V servo

Shipping list:

• 1 × C400 metal bracket kit
• 4 × 97mm mecanum wheel
• 4 × 37GB-520 motor
• 1 × wifi/bluetooth/handle control kit (optional)
• Free: source code, app, screw, wrench

Note:

• Product does not contain battery.
• In order to facilitate transportation, the product is not assembled.
• More documents can be downloaded at gitnova.com.
• If you need to install the manual, please leave your email after placing the order.
