With G6 Metal Claw 6 DOF Large Metal Robot Arm Aluminum Alloy Bracket DIY Open Source Maker Education with 3 Type Control Kit
- Color
-
- Silver
- Black
- Golden
- Silver Bluetooth
- Silver WiFi
- Silver Handle
- Black Bluetooth
- Black WiFi
- Black Handle
- Golden Bluetooth
- Golden WiFi
- Golden Handle
Item specifics
Robot arm parameters
Body material: aluminum alloy
Weight: 0.9kg (including paw servo weight)
Color: black, silver, golden
Servo optional: MG996R metal gear servo
Control kit: Bluetooeh/WiFi/handle control kit (optional)

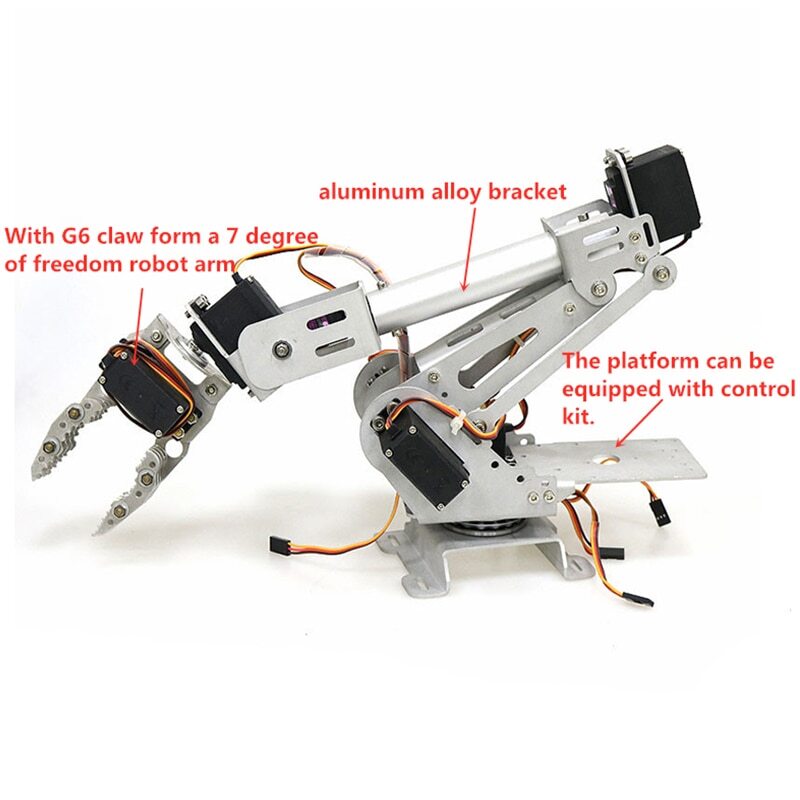

Features: The mechanical arm can be equipped with a mechanical gripper, the weight of the grip is about 500g; the base of the robot arm can be rotated 360 degrees.
Mechanical gripper parameters
Material: hard aluminum alloy
Color: black/silver
Weight: about 40g (without steering gear)
Maximum angular separation: 86mm
Overall length: 83mm (the overall longest length when the paw is closed)
Overall width 1:150mm (maximum overall width when the paw is open)
Overall width 2:55mm (maximum overall width when the paw is closed)
Overall thickness: 54mm (maximum overall thickness with servo paws)
MG996R steering gear parameters
- Connector line: heavy duty, 11.81" (300 mm)
- Colour: black
- Gear: metal gear
- Working voltage: 4.8 - 7.2Volts
- Stall torque: 12 kg - cm (208.3 oz.) at 6V
- Stall torque: 9 kg - cm (180.5 oz.) at 4.8V
- Working speed: 0.13sec/60 degrees (6.0V no load)
- Working speed: 0.17sec/60 degrees (4.8V no load)
- Weight: 55 grams
- Product pull: 15kg/cm (6V)
- Product size: 40.7mm×19.7mm×42.9mm
Silver/black/golden robot arm
6 degree of freedom mechanical arm bracket: 1 set
G6 claw: 1 pcs
MG996R steering gear: 7 pcs
Screw parts: 1 set
Silver/black/golden Bluetooth control kit
6 degree of freedom mechanical arm bracket: 1 set
G6 claw: 1 pcs
MG996R steering gear: 7 pcs
Screw parts: 1 set
Bluetooth control kit: 1 set
Silver/black/golden WiFi control kit
6 degree of freedom mechanical arm bracket: 1 set
G6 claw: 1 pcs
MG996R steering gear: 7 pcs
Screw parts: 1 set
WiFi control kit: 1 set
Silver/black/golden handle control kit
6 degree of freedom mechanical arm bracket: 1 set
G6 claw: 1 pcs
MG996R steering gear: 7 pcs
Screw parts: 1 set
Handle control kit: 1 set
Note
The robotic arms are shipped in bulk, and the assembly instructions are provided after purchase. Where the control kit is purchased, the source code will be given.
There are many accessories for assembling the robot arm, so you need some patience.
Does not contain battery, can be purchased separately.
The final color please refer to our actual goods. Please know this before you buy it. Thank you !
2. The picture we show is 100% Real Object Photography.
3. The size may have 2-3cm differs due to the maunal measurement.
4. For the shipping convenience, the product is unassembled .
